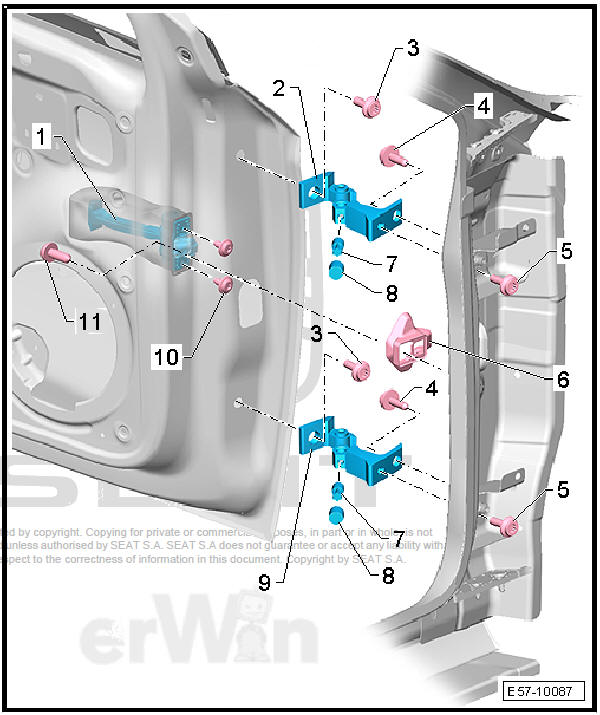

Seat Leon >> Exploded view - door

Front doors, door components, central locking

  1. - Front door holder
    • The door trim and the loudspeaker must be removed for removal.
  2. - Upper hinge
  3. - Bolt.
    • 2 + 2 each
    • 32+- 5 Nm
    • Always replace.
  4. - Bolt.
    • 2 + 2 each
    • 32+- 5 Nm
    • Always replace.
  5. - Bolt.
    • 2 + 2 each
    • 32+- 5 Nm
    • Always replace.
  6. - Seal
  7. - Stud
    • Always replace.
    • 10+- 1.5 Nm
  8. - Sealing plug
    • To cover the stud head
  9. - Lower hinge
  10. - Bolt.
    • 2 + 2 each
    • 8+- 1 Nm
  11. - Bolt.
    • 1 + 1 each
    • 30+- 5 Nm
    • For fixing the strut of the door retainer on the A-pillar.

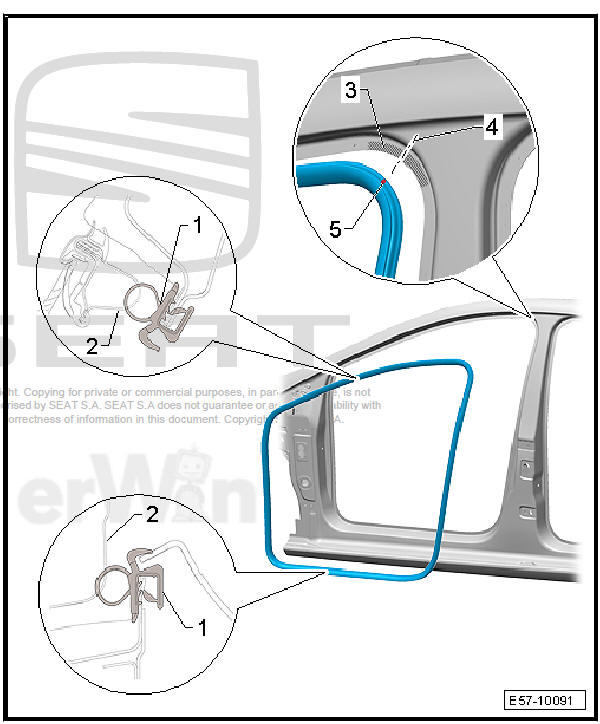

Exploded view - door seals

Front doors, door components, central locking

  1. - Front door seal
  2. - Front door
  3. - Top diameter of the body flange
    • Is used as reference point when installing the seal
  4. - Imaginary line of the reference
    • Angle bisector, that form the sides of the upper radius
  5. - Colour marking
    • Marked on the inner section of the seal
    Door
    ...

    Removing and installing inner door seal
    Seal for front door: remove Front door seal: Fitting Special tools and workshop equipment required Release lever - U 30800- Thrust piece - T20098- Remove front door seal Note The ...
