Seat Leon >> Overview of fitting locations - central locking system

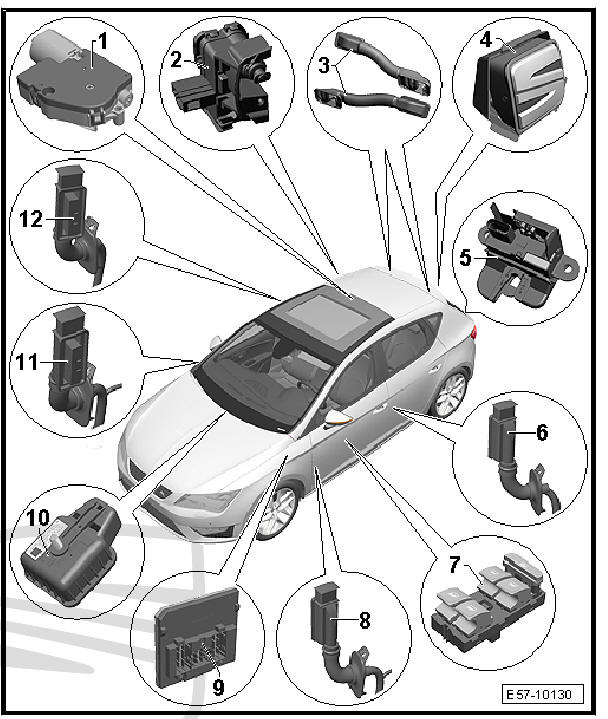

Overview of fitting locations - central locking system (part I)

Front doors, door components, central locking

  1. - Sliding sunroof adjustment control unit - J245-
    • The sliding sunroof control unit - J245- is integrated in the sliding sunroof motor - V1-
  2. - Tank filler flap locking motor - V155-
  3. - Coupling station
    • 2 off
    • Installation location: upper part of tailgate
  4. - Rear lid handle release button - E234-
  5. - Lock unit for tailgate - F256-
    • The lock unit on the boot/tailgate - F256- in built into the unlocking motor for boot/tailgate - V139-
  6. - Coupling station
    • Only for the five-door model
    • Installation location: B-pillar, left side
  7. - Switch module, window regulators for front door (driver's side)
    • The window winder control unit, driver side includes the following electrical components:
  • Central switch for window regulators in driver door - E189-
  • Button for window regulator, front driver's side - E710-
  • Rear driver side window regulator button - E711-
  • Button for window regulator, rear passenger side - E713-
  • Button for window regulator, rear driver side - E716-
  • Button illumination bulb - L76-
    • Installation and removal; installing and removing the window control switch unit in the driver's side door E512
  1. - Coupling station
    • Installation location: A-pillar, left side
  2. - Control unit for the onboard network - J519-
    • The on board network control unit - J519- is found on the driver's side, behind the relay carrier.
    • The Data bus diagnosis interface - J533- is incorporated in the On board control unit - J519- .
    • Installation and removal; installing and removing onboard network control J519
  3. - Alarm horn - H12-
    • Fitting location: in plenum chamber
    • Installation and removal; Horn; high tone horn H2 / low tone horn H7: install and remove .
  4. - Coupling station
    • Installation location: A-pillar, passenger side
  5. - Coupling station
    • Only for the five-door model
    • Installation location: B-pillar, passenger side

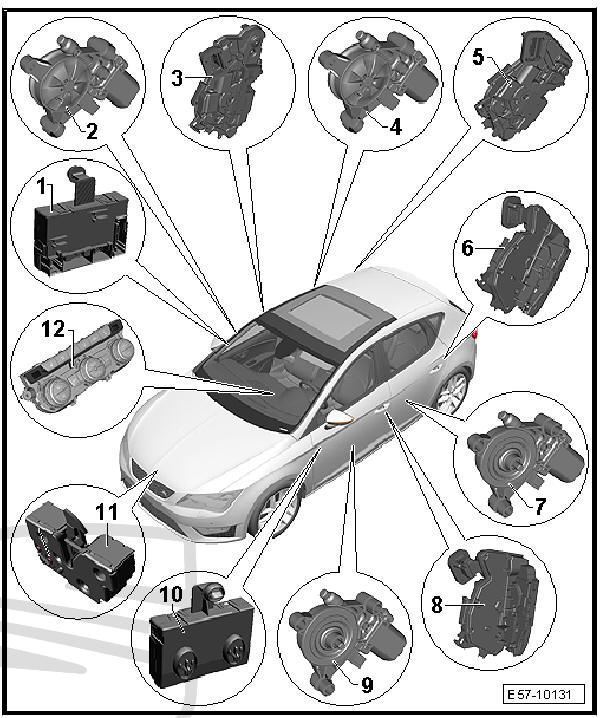

Overview of fitting locations - central locking system (part II)

Front doors, door components, central locking

  1. - Control unit on front door (passenger side)
    • Door control unit, passenger side - J387-
  2. - Motor on window regulator, front door (passenger side)
    • Motor for window regulator, passenger side - V148-
    • Removing and fitting
  3. - Door lock on front door (passenger door)
    • The door lock assembly includes the following electrical components:
  • Passenger door contact switch - F3-
  • Central locking lock unit, passenger side - F221-
  • Central locking unit motor, passenger door - V57-
  • Central locking unit motor (Safe), passenger door - V162-
    • Removing and fitting
  1. - Motor on window regulator, back door (passenger side)
    • Motor for window regulator, rear passenger side - V472-
    • Only for the five-door model
    • Removing and fitting
  2. - Door lock on back door (passenger door)
    • Only for the five-door model
    • The door lock assembly includes the following electrical components:
  • Rear door contact switch, passenger side - F506-
  • Locking unit for central locking at back (passenger side) - F436-
  • Motor for SAFE function of the rear central locking (passenger side) - V538-
  • Motor for central locking at back (passenger side) - V540-
  1. - Door lock on back door (passenger side)
    • Only for the five-door model
    • The door lock assembly includes the following electrical components:
  • Rear door contact switch, driver side - F505-
  • Locking unit for central locking at back (driver side) - F435-
  • Motor for SAFE function of the rear central locking (driver side) - V537-
  • Motor for central locking at back (driver side) - V539-
  1. - Motor on window regulator, rear door (driver's side)
    • Motor for window regulator, rear driver side - V471-
    • Only for the five-door model
    • Removing and fitting
  2. - Door lock unit on front door (driver's side)
    • The door lock assembly includes the following electrical components:
  • Driver door contact switch - F2-
  • Central locking lock unit, driver side - F220-
  • Central locking unit motor, driver door - V56-
  • Central locking unit motor (Safe), driver door - V161-
  • Contact switch in lock cylinder on driver's side - F241-
  1. - Motor on window regulator, front door (driver's side)
    • Window regulator motor driver side - V147-
    • Removing and fitting
  2. - Control unit on front door (driver's side)
    • Driver door control unit - J386-
  3. - Contact switch for bonnet - F266-
    • Installation location: on the lock carrier plate
    • Remove the lock from the front bonnet
  4. - Switch module
    • The switch module on the central console includes the following components, depending on the versions:
  • Door locking
  • Door unlocking
  • Hazard warning lights switch
  • ESP disconnection button
  • SET button (to indicate tyre incidents)
  • Heated rear window button - E230-
  • Heated driver seat regulator - E94-
  • "AIRBAG OFF" warning lamp
  • Passenger heated seat regulator - E95-
  • AUX key
    • Removal and installation; Removal and installation of buttons in the switch panel
    Removing and installing driver door control unit - J386- and front passenger door control unit - J387-
    Removing Removing interior trim of front door: Front door trim: removing and installation; front door trim: removing and installation. Unplug electrical connectors -2 and 3-; to do so, pull lo ...
