Seat Leon >> Removing and installing plenum chamber cover

Special tools and workshop equipment required

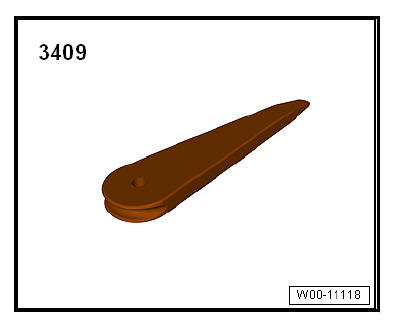

  • Release lever - 3409-

Body - front

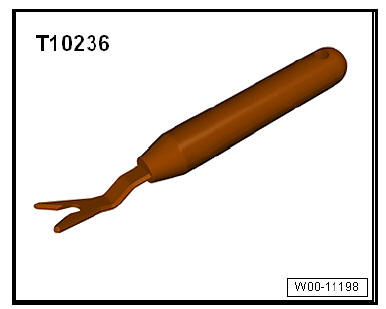

  • Release tool - T10236-

Body - front

Removing

  • Remove windscreen wiper arm.
  • Lift the front bonnet. Use the rod to keep it open.

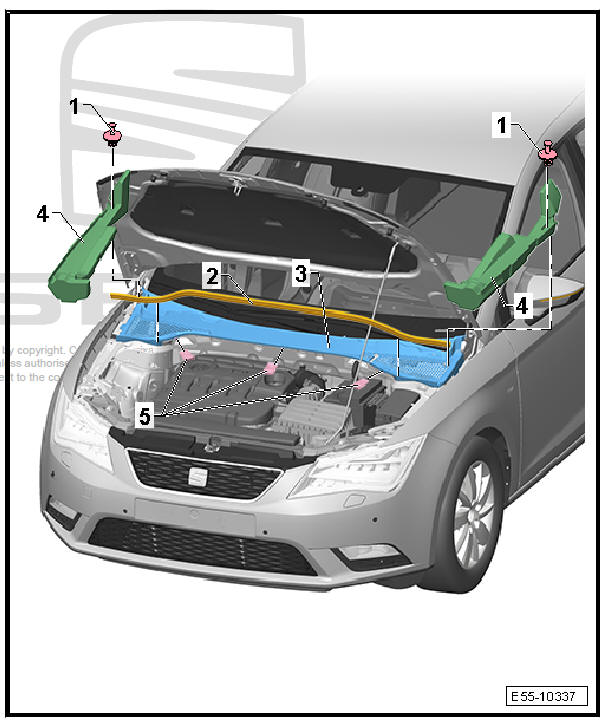

  • Remove rubber gasket -2-.

Body - front

  • Clip out the filler pieces -4 -.
  • Use release tool - T10236- on both sides to separate clips -1-.
  • Clip out the clamps -5-.

Note The grille below the windscreen is inserted into a guide rail below the windscreen.

  • Clip out the grille -3- from its guide rail of the windscreen using the lever - 3409- .

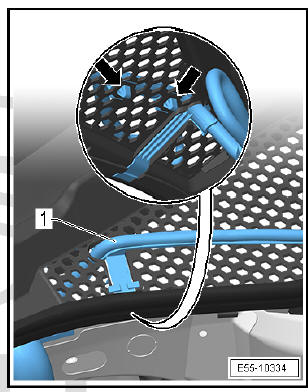

  • When the grill is removed, clip out the fixing clips -arrows- of the supply line -1- of the nozzles of the windscreen wiper system.
  • Remove the grille from below the windscreen.

fitting

Fit in reverse order from removal, remembering the following:

Body - front

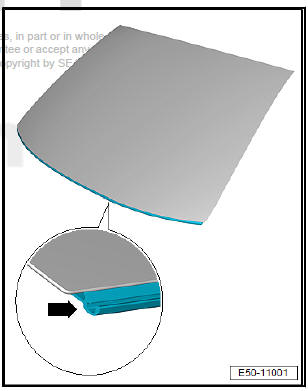

Note When engaging the grille in the guide rail of the windscreen, take care not to damage the rubber lip -arrow-.

  • Install windscreen wiper arm,
  • Adjust windscreen wiper arm.

Body - front

    Removing and installing bulkhead
    Special tools and workshop equipment required Torque wrench - V.A.G 1331- Release lever - 3409- Removing Lift the front bonnet. Use the rod to keep it open. Remove the grille be ...

    Air duct grille cover: removing and installing
    Special tools and workshop equipment required Release lever - 3409- Removing Remove the grille below the windscreen Clip out the cover -1- and remove from the holder. fitting Instal ...
