Seat Leon >> Removing and installing bulkhead
SEAT Leon Service and Repair Manual / General body repairs, exterior / Body - front / Bulkhead / Removing and installing bulkhead
Special tools and workshop equipment required

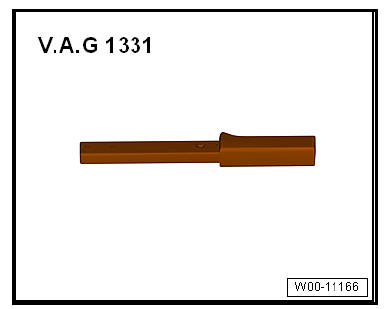

- Torque wrench - V.A.G 1331-

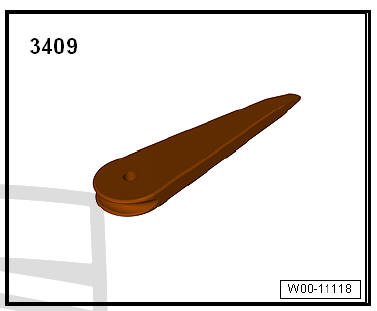

- Release lever - 3409-
Removing
- Lift the front bonnet. Use the rod to keep it open.
- Remove the grille below the windscreen.

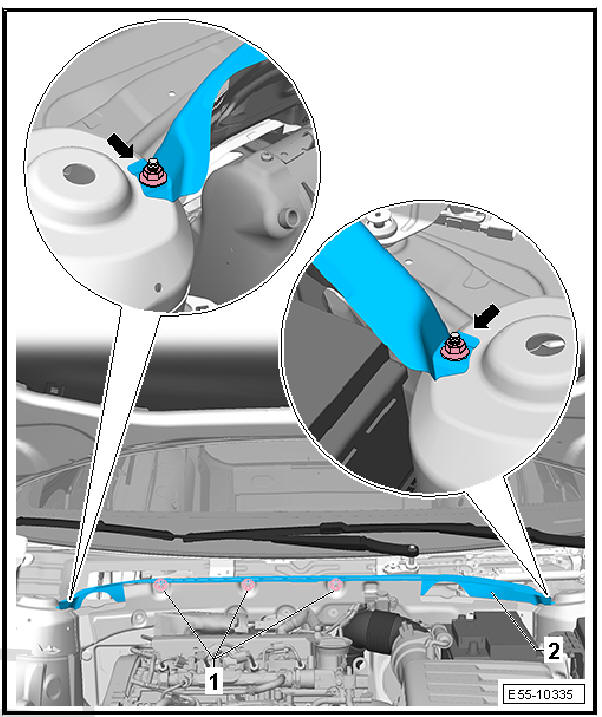

- Remove the fixing rings -1- of the noise insulation of the plenum chamber cover.
- Remove noise insulation of the plenum chamber cover.
- Remove the nuts -arrows- on both sides.
- To remove the plenum chamber cover, pull upwards in order to release it from the fixing tabs on the body.
fitting
Fit in reverse order from removal, remembering the following:
Note
- In case the sealing ring -2- is damage, replace it.
- Use the washers -7- for E-PERIENCE models.

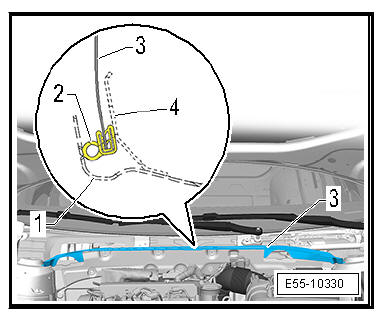

- Engage the plenum chamber cover -3- in the retaining tabs -4- of the plenum chamber -1-.
Exploded view - plenum chamber partition panel
- Separator
Left and right hand side
Secure the retaining clip
of the body
Note
If one of the clips are damaged, the
filling piece must be replaced with a
new one.
- Reta ...
Removing and installing plenum chamber
cover
Special tools and workshop equipment required
Release lever - 3409-
Release tool - T10236-
Removing
Remove windscreen wiper arm.
Lift the front bonnet. Use the rod to keep it op ...
