Seat Leon >> Registration light

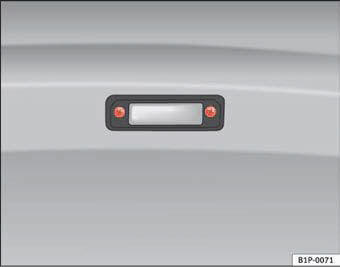

Fig. 176 Registration

Fig. 176 Registration plate light

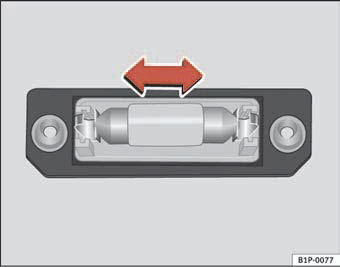

Fig. 177 Registration

Fig. 177 Registration plate light

– To remove the bulb holder, unscrew the bolts  fig. 176.
– Remove the lamp, moving it in the direction of the arrow and outwards  fig. 177.
– Installation is done in the reverse order.
