Seat Leon >> Luggage compartment lights

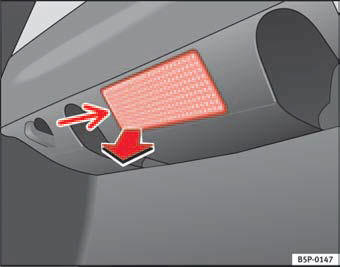

Fig. 174 Luggage

Fig. 174 Luggage compartment light

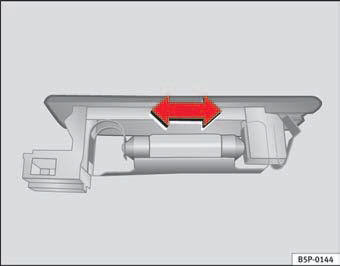

Fig. 175 Luggage

Fig. 175 Luggage compartment light

– Extract the tulip shaped fitting by pressing on the inside edge of this -arrow- using the flat side of a screwdriver  fig. 174.
– Press the lamp sideways and remove it from its housing  fig. 175.
– Installation is done in the reverse order.

    Side indicators
    Fig. 173 Indicator – Press the indicator on one of its sides to take it out. – Remove the lamp holder from the indicator. – Remove the failed glass bulb and replace with a new bulb. – In ...

    Registration light
    Fig. 176 Registration plate light Fig. 177 Registration plate light – To remove the bulb holder, unscrew the bolts  fig. 176. – Remove the lamp, moving it in the direction of the arr ...
