Seat Leon >> Replacing the bulb for interior light W1 / W13 / W19, front

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Lights / Replacing the bulb for interior light W1 / W13 / W19, front

Special tools and workshop equipment required

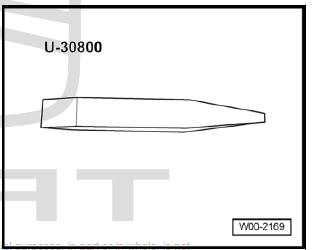

  • Lever - U30800-

Lights, bulbs, switches - interior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Removing and installing interior light/reading light (front)

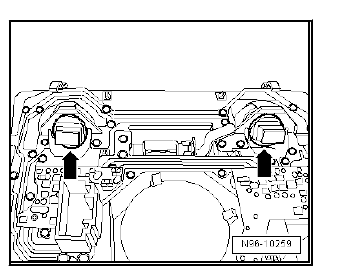

  • Turn bulb holder -arrows- of defective reading lamp by 90Вє to the left.
  • Take the bulb with holder out of the reading light.

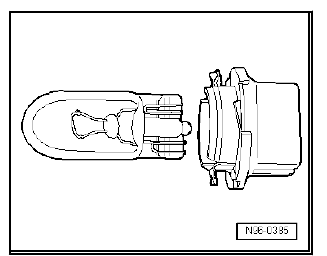

  • Pull glass-base bulb out of bulb holder.

Installing

Installation takes place in reverse order.
