Seat Leon >> Replacing the bulb or rear interior light W47 / W48

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Lights / Replacing the bulb or rear interior light W47 / W48

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

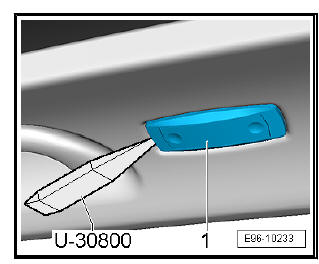

  • Carefully prise out the rear left-hand interior light - W47- or rear right-hand interior light - W48- -1- with the lever - U30800- .

Lights, bulbs, switches - interior

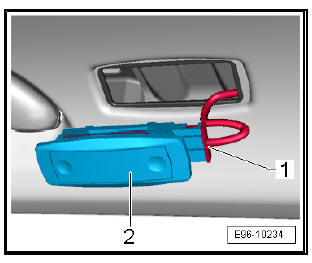

  • Release the plug connection -1- and remove together with the rear left-hand interior light - W47- or the rear right-hand interior light - W48- -2-.

Lights, bulbs, switches - interior

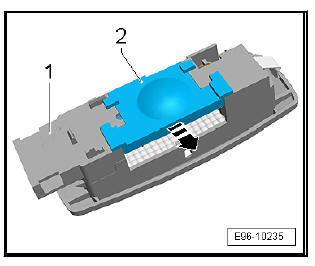

  • Push the cover -2- in -the direction of the arrow-.

Lights, bulbs, switches - interior

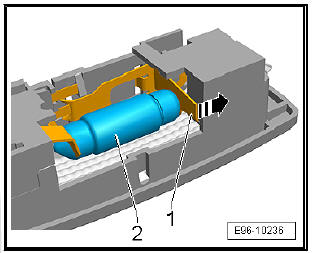

  • Push the contact plate -1- of the light in -the direction of the arrow-.
  • Remove festoon bulb -2- from bulb holder.

Installing

Installation takes place in reverse order.

Lights, bulbs, switches - interior

Removing and installing LED for background lighting

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove door trim .

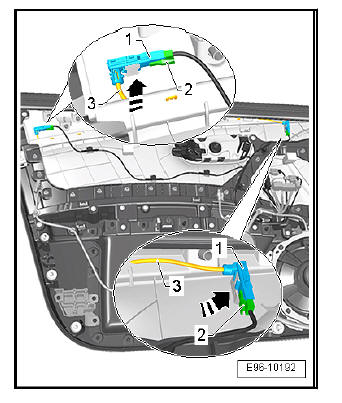

  • Remove the plug connectors of the -2- LED module -1-.
  • Remove the LED module from its mount -1- in -the direction of the arrow-.
  • Hold the light strip tight -3- tight and pull on the LED module -1- until the clips are released.

Installing

Installation takes place in reverse order.
