Seat Leon >> Removing and installing storage compartment illumination bulb - L120-

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Lights / Removing and installing storage compartment illumination bulb - L120-

If the centre console light with LED has a defect, the lighting should be changed.

Special tools and workshop equipment required

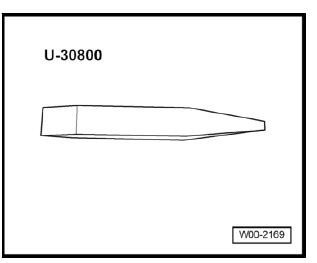

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Removing the air conditioning block.

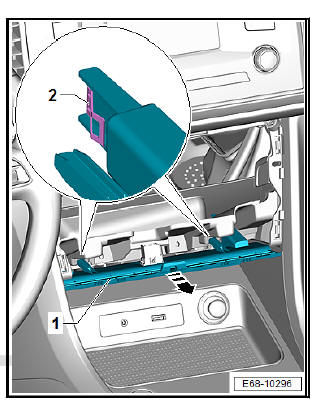

  • Detach the trim -1- -direction of arrow-.

Lights, bulbs, switches - interior

  • Release electrical connector and separate from the lights in the centre console.

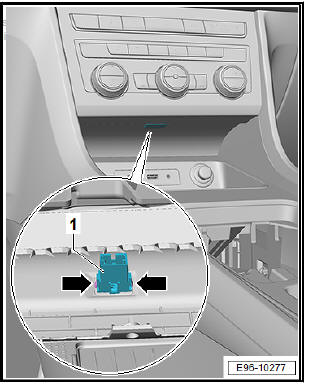

  • Press on the fasteners -arrows- and remove ambient lighting -1- from the cover of the storage compartment in the centre console.

Installing

Installation takes place in reverse order.
