Seat Leon >> Remove and install luggage compartment light W3

Special tools and workshop equipment required

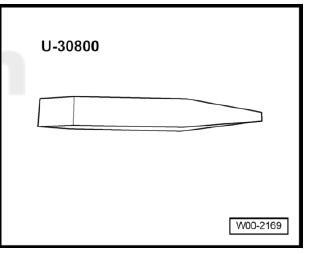

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

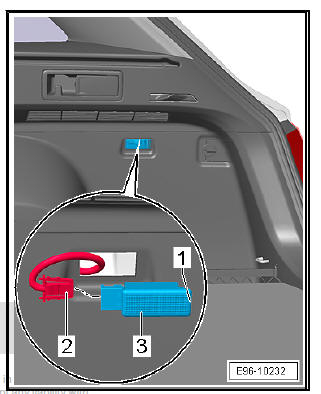

  • Press the fixing lugs -1- together using the lever - U30800- and remove the luggage compartment light -3-.
  • Unplug the electrical connector -2-.

Lights, bulbs, switches - interior

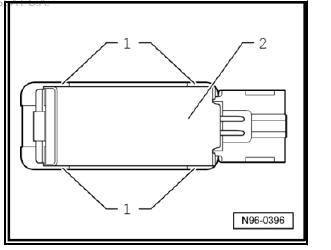

  • Release locking lugs -1- and remove heat shield -2- from light lens.

Lights, bulbs, switches - interior

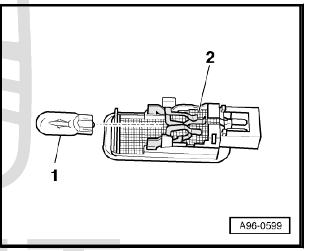

  • Remove bulb -1- from bulb holder -2- on reverse side of luggage compartment light.

Installing

Installation takes place in reverse order.

Installing and removing illuminated make-up mirror W20 / W14

Special tools and workshop equipment required

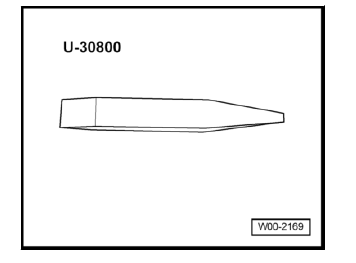

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Swivel sun visor forwards.

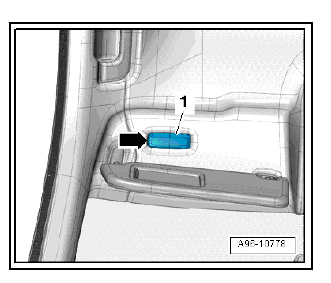

  • Carefully pry out the light -1- of the make-up mirror using a lever - U30800- applied in the recess -arrow-.
  • Disconnect connector.

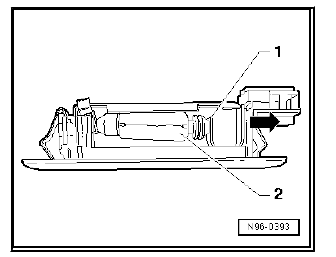

  • Press the contact plate -1- of light by outwards and remove festoon bulb -2- from bulb holder.

Installing

Installation takes place in reverse order.
