Seat Leon >> Side lights

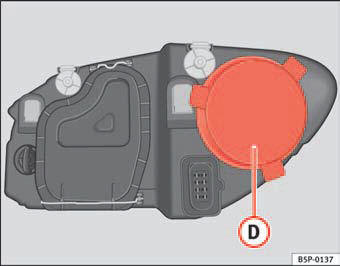

Fig. 168 Side lights

Fig. 168 Side lights

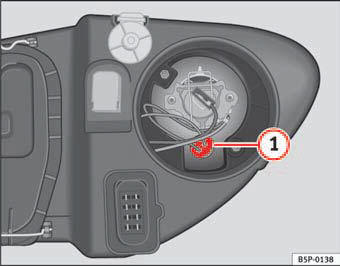

Fig. 169 Side lights

Fig. 169 Side lights

– Raise the bonnet.
– Remove the cover  fig. 168 D by pulling on this.
– Extract the lamp holder  fig. 169 1 outwards.
– Replace the bulb by pulling this out and inserting the replacement.
– Installation is done in the reverse order.

    Main beam lights
    Fig. 166 Main beam headlights Fig. 167 Main beam headlights – Raise the bonnet – Remove the cover  fig. 166 C by pulling on this. – Remove the connector  fig. 1671 from the b ...

    Rear lights
    • On the body - Indicator, side and brake light • On the tailgate - Left-hand side: side and foglight. - Right-hand side: side and reverse light. ...
