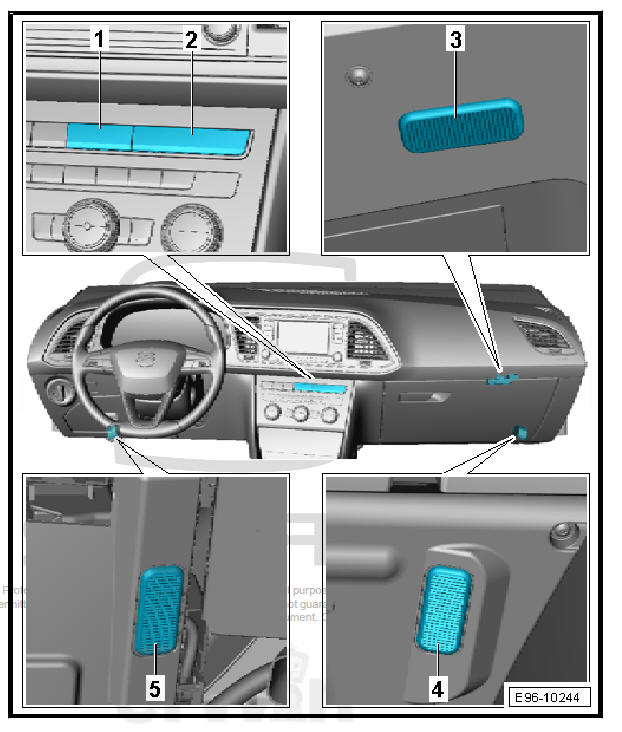

Seat Leon >> Fitting location overview - lights in dash panel

Lights, bulbs, switches - interior

  1. - Indicator lamp for hazard warning light - K6-
    • Removal and installation
  2. - Warning lamp for airbag deactivated on front passenger side - K145- / front passenger side airbag deactivated warning lamp - K286-
    • Removal and installation
  3. - Glove compartment light - W6-
    • Removal and installation
  4. - Right footwell light - W10-
    • In the right footwell light - W10- with LED, the light must be replaced if there is a defect.
    • Removal and installation
    • Renewing bulb
  5. - Left footwell light - W9-
    • In the left footwell light - W9- with LED, the light must be replaced if there is a defect.
    • Removal and installation
    • Renewing bulb

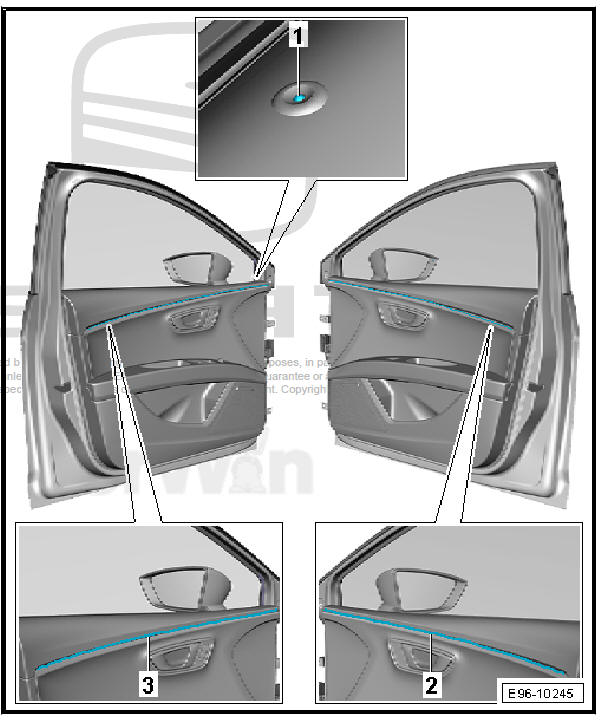

Fitting location overview - lights in front doors

Lights, bulbs, switches - interior

  1. - Central locking deadlock function warning lamp - K133-
    • Removal and installation
  2. - Light for passenger door ambient lighting - W87-
    • Removal and installation
  3. - Background lighting assembly on driver door - W86-
    • Removal and installation

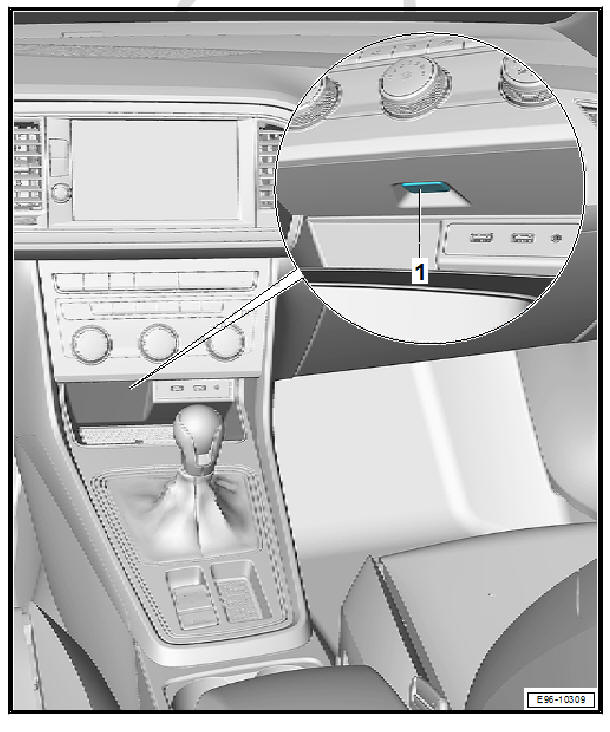

Overview of fitting locations - lights in centre console

Lights, bulbs, switches - interior

  1. - Storage compartment illumination bulb - L120-
    • Removal and installation

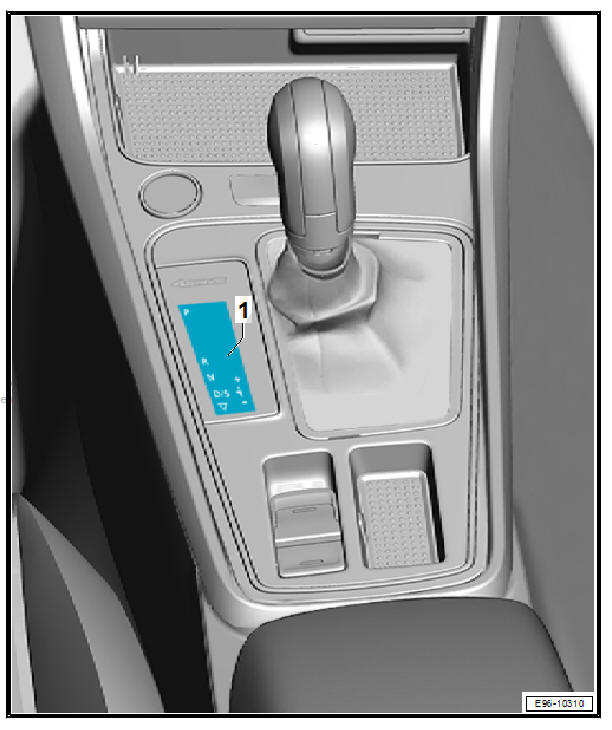

Lights, bulbs, switches - interior

  1. - Selector lever position display - Y26-
    • Removal and installation

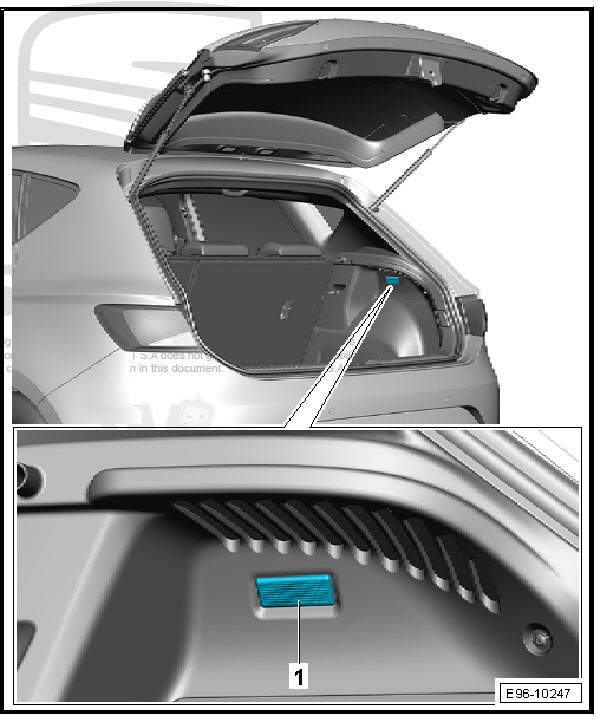

Fitting location overview - lights in luggage compartment

Lights, bulbs, switches - interior

  1. - Luggage compartment light - W3-
    • In the luggage compartment light - W3- with LED, the light must be replaced if there is a defect.
    • Removal and installation

Fitting location overview - lights in roof trim

Lights, bulbs, switches - interior

  1. - Driver side illuminated make-up mirror - W20-
    • In the illuminated makeup mirror on the driver's side - W20- with LED, the light must be replaced if there is a defect.
    • Removal and installation
  2. - Rear left interior light - W47-
    • In the left rear interior light - W47- with LED, the light must be replaced if there is a defect.
    • Removal and installation
  3. - Rear interior light - WX2-
    • In the rear interior light - WX2- with LED, the light must be replaced if there is a defect.
    • Removal and installation
  4. - Rear right interior light - W48-
    • In the right rear interior light - W48- with LED, the light must be replaced if there is a defect.
    • Removal and installation
  5. - Front interior light - WX1-
    • In the front interior light - WX1- with LED, the light must be replaced if there is a defect.
    • Removal and installation
    • Replace bulb for passenger reading light. - W13-
    • Replace bulb for driver's side reading light. - W19-
  6. - Front passenger side illuminated vanity mirror - W14-
    • In the illuminated make-up mirror on the passenger's side - W14- with LED, the light must be replaced if there is a defect.
    • Removal and installation
    Lights
    ...

    Glove compartment light - W6- : Removing and installing
    Special tools and workshop equipment required Lever - U30800- Note For removing and installing of components located in a visible zones (switches, covers, linings, etc.) always protect the ...
