Seat Leon >> Glove compartment light - W6- : Removing and installing

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Lights / Glove compartment light - W6- : Removing and installing

Special tools and workshop equipment required

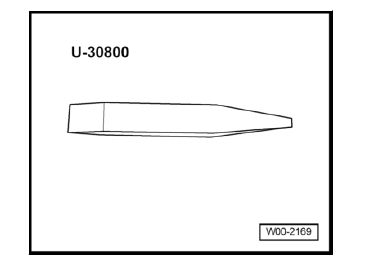

  • Lever - U30800-

Note For removing and installing of components located in a visible zones (switches, covers, linings, etc.) always protect the zones where a lever ( lever - U30800- , screwdriver) must be used using normal adhesive tape.

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

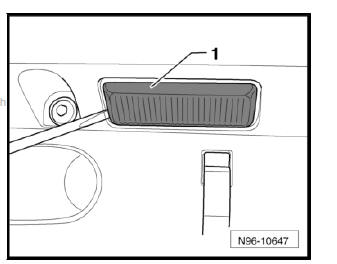

  • Carefully lever out the interior light -1- using the lever - U30800- .

Lights, bulbs, switches - interior

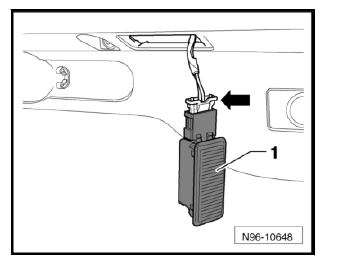

  • Disconnect plug connector -arrows- and remove the glove compartment light -1-.

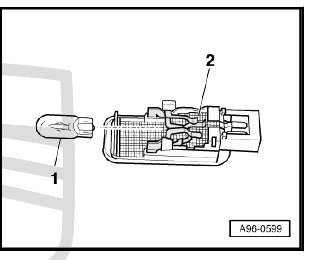

  • Remove bulb -1- from bulb holder -2- on reverse side of glove compartment light.

Installing

Installation takes place in reverse order.
