Seat Leon >> Main beam lights

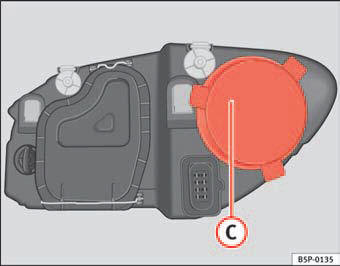

Fig. 166 Main beam

Fig. 166 Main beam headlights

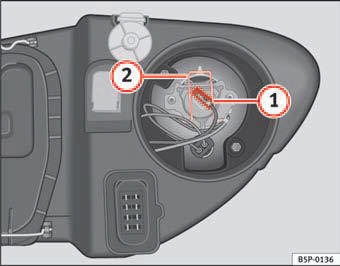

Fig. 167 Main beam

Fig. 167 Main beam headlights

– Raise the bonnet
– Remove the cover  fig. 166 C by pulling on this.
– Remove the connector  fig. 1671 from the bulb.
– Press the spring  fig. 167 2 inwards and to the right.

– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.

    Dipped beam lights
    Fig. 164 Dipped headlights – Raise the bonnet – Remove the loops  fig. 164 1 in the direction of the arrow and remove the cover. – Remove the connector  fig. 165 2 from the bul ...

    Side lights
    Fig. 168 Side lights Fig. 169 Side lights – Raise the bonnet. – Remove the cover  fig. 168 D by pulling on this. – Extract the lamp holder  fig. 169 1 outwards. – Replace th ...
