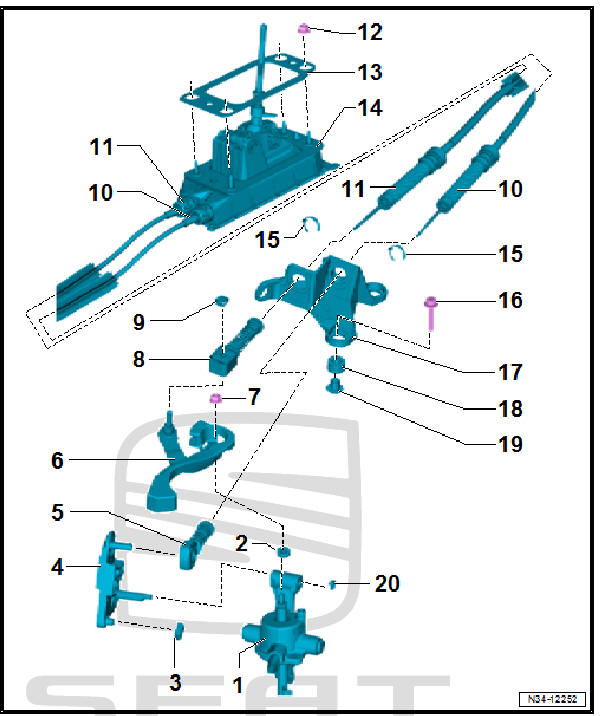

Seat Leon >> Exploded view - selector mechanism

Note

  • Lubricate bearing positions and sliding surfaces.
  • For grease allocation.

Controls, housing

  1. - Selector shaft with cover
  2. - Oil seal
    • Must be renewed after fitting
  3. - Shoe
  4. - Gate relay lever
    • Equivalent
    • Grease
    • Installation position
    • After installing, adjust selector mechanism
    • Remove and install relay lever together with cable endpiece
  5. - Cable attachment
    • To secure selection control cable to relay lever
    • After installing, adjust selector mechanism
    • Do not mix up. Cable end-pieces for gate selector cable to relay lever and gear selector cable to gearbox selector lever are different.
    • Allocation
    • Remove from the gate relay lever
    • Press onto relay lever
  6. - Gear selection rod
    • Grease
    • Install so that gap in splines aligns with selector shaft
    • Installation position
    • After installing, adjust selector mechanism
  7. - Hexagon nut
    • Tightening torque
  8. - Cable attachment
    • To secure selection control cable to selection rod
    • After installing, adjust selector mechanism
    • Do not mix up. Cable end-pieces for gate selector cable to relay lever and gear selector cable to gearbox selector lever are different.
    • Allocation
  9. - Retaining clip
    • Must be renewed after fitting
  10. - Gear selection control cable
    • Connect to cable end-piece.
    • Installation position
  11. - Gear selector cable
    • Connect to cable end-piece.
    • Installation position
  12. - Hexagon nut
    • Installation position
  13. - Seal
    • Between gear lever casing and vehicle underbody
    • Renew after removing the selector housing.
    • Self-adhesive
    • Stick it onto the protective cover
  14. - Gear stick protective cover
  15. - Retaining clip
    • Must be renewed after fitting
    • do not damage the gear selector cables when disassembling
    • Installation position
  16. - Hexagonal bolt
    • 3 Units
    • for cable support bracket
    • 20 Nm
  17. - Cable support bracket
    • After installing, adjust selector mechanism
  18. - Shift collar
    • 3 Units
    • Cable support bracket mounting on gearbox
  19. - Separation element
    • 3 Units
  20. - Clip
