Seat Leon >> Exploded view - track rod

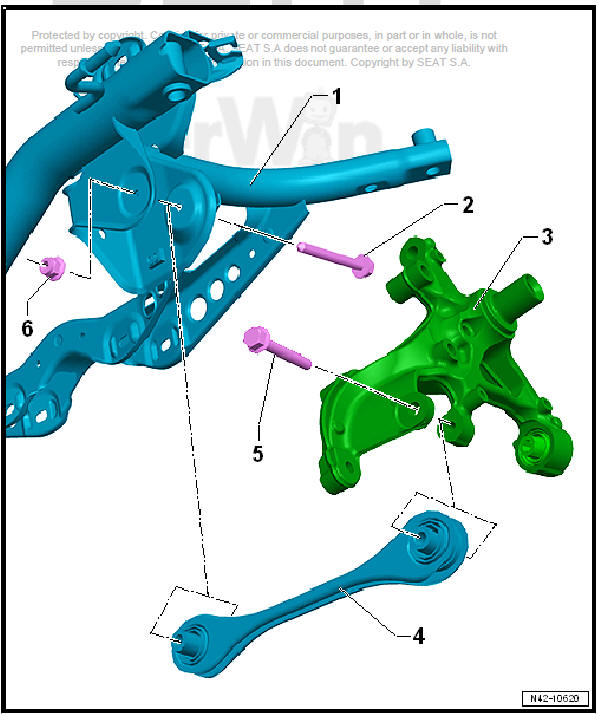

Assembly overview - track rod, multi-link suspension, front-wheel drive

Rear suspension

  1. - Sub-frame
  2. - Bolt
    • Always renew after removing
    • 70 Nm +180º
  3. - Wheel bearing housing
  4. - Connecting rod
    • Removing and installing
  5. - Bolt
    • Always renew after removing
    • Always tighten bolted joints with suspension in unladen position
    • 70 Nm +180º
  6. - Nut
    • Always renew after removing

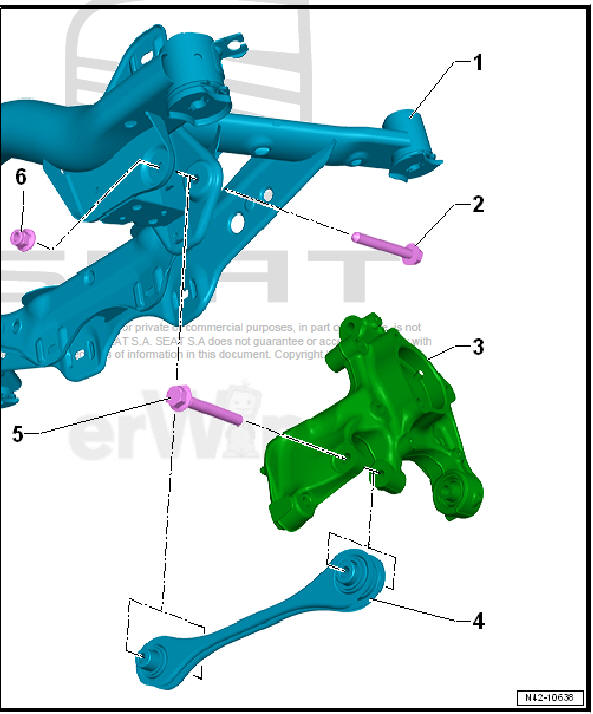

Assembly overview - track rod, multi-link suspension, four-wheel drive

Rear suspension

  1. - Sub-frame
  2. - Bolt
    • Always renew after removing
    • 70 Nm +180º
  3. - Wheel bearing housing
  4. - Connecting rod
    • Removing and installing
  5. - Bolt
    • Always renew after removing
    • Always tighten bolted joints with suspension in unladen position
    • 70 Nm +180º
  6. - Nut
    • Always renew after removing
    • 70 Nm +180º
    Exploded view - transverse links
    Assembly overview - transverse link, multi-link suspension, front-wheel drive - Nut Always renew after removing - Plate - Lower transverse swinging arm Removing and installing ...

    Removing and installing upper transverse link
    Removing and installing upper transverse link, front-wheel drive Special tools and workshop equipment required Torque wrenches - V.A.G 1332- Removing Remove rear wheel on affected side. ...
