Seat Leon >> Wheel securing bolts: Tighten to specified torque

SEAT Leon Service and Repair Manual / Maintenance / Description of work / Wheel securing bolts: Tighten to specified torque

At the delivery inspection

  • Loosen / tighten the anti-theft wheel bolts
  • Tightening wheel bolts
  • Install wheel centre trim, wheel bolt cover caps and wheel cover

Loosen / tighten the anti-theft wheel bolts.

NOTICE To loosen or tighten the anti-theft wheel bolts, you need a special adapter that is part of the on-board tools.

You are not allowed to not use an impact screwdriver to loosen the anti-theft wheel bolts (bolts with lock).

If there is no adapter in the vehicle for tightening / loosening the anti-theft wheel bolts, use the respective main kit for the wheel bolts.

Maintenance

Special tools and workshop equipment required

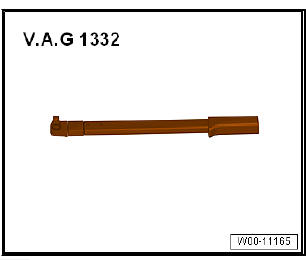

  • Torque wrench - VAG 1332-

Maintenance

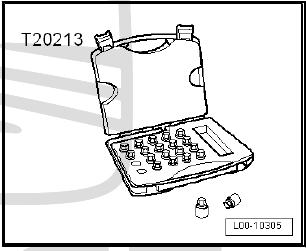

  • Adapter set for tamper-proof wheel bolts - T20213-

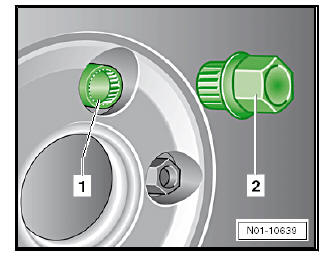

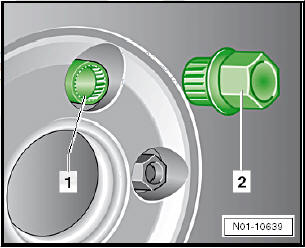

  • Push adapter -2- into anti-theft wheel bolt -1- onto stop.
  • Push wheel brace onto adapter -2- onto stop.

Tightening wheel bolts:

  • Tighten the wheel bolts diagonally and alternately to the following torque setting:
    • 120 Nm

Maintenance

CAUTION

Never use an impact screwdriver for tightening the wheel bolts.

Install wheel centre trim, wheel bolt cover caps and wheel cover:

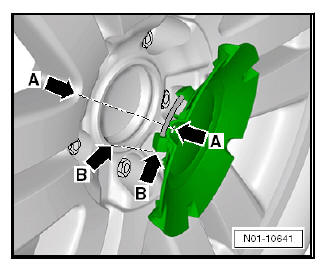

  • Press the wheel hub cover in the intended opening of the wheel hub. Ensure that -A and B- are accurately fitted on rim.

Maintenance

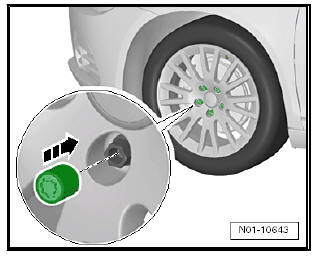

Install the wheel bolt caps.

Maintenance

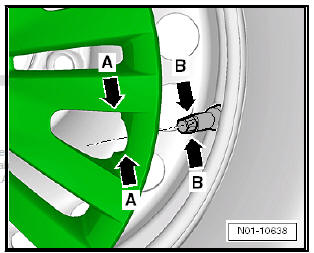

Press the wheel trim equally onto the steel rim. Make sure that valve -B- seats in cut-out -A- of wheel trim.

NOTICE After finishing the work, duly deposit the anti-theft bolt with the vehicle tool kit.

Maintenance

Anti-puncture kit: check expiry date on sealed bottle, and replace if necessary

NOTICE The breakdown set is located in the cavity of the spare tyre.

The breakdown set includes a tyre sealant bottle, among other things.

Expiration date

  • Check the expiration date.

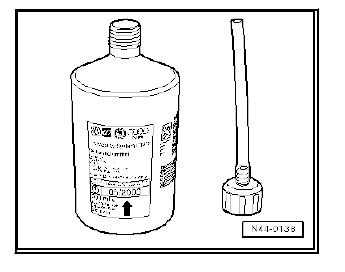

The use-by date is on a sticker on the bottle of tyre sealant -arrow-

  • If the expiration date has been exceeded, replace the tyre sealant (the tyre sealant expires after 4 years).

NOTICE The bottle must be replaced after use.

Observe environmental requirements for disposal.

    Tyre pressure until MY 15 (week 21/2015)
    NOTICE The mandatory tyre pressures for the respective model can also be found on a sticker attached to the inside of the tank flap or to the B-pillar. Check for the presence of the inflation pr ...

    Brake fluid level according to wear of pads: check
    Only use new genuine brake fluid in accordance with standard US FMVSS 116 DOT 4. CAUTION Do not under any circumstances allow brake fluid to come into contact with fluids that contain ...
