Seat Leon >> Tyre pressure until MY 15 (week 21/2015)

NOTICE The mandatory tyre pressures for the respective model can also be found on a sticker attached to the inside of the tank flap or to the B-pillar.

Check for the presence of the inflation pressure sticker at delivery inspection.

If the inflation pressure sticker is missing, proceed as follows: Look up the correct part number for the respective vehicle in the - Electronic parts catalogue .

Using the part number, locate the respective inflation pressures in the inflation table.

Spare wheel with standard tyres: Observe the maximum designated tyre pressure for the vehicle.

Temporary spare wheel: The tyre pressure is indicated on the tyre sidewall.

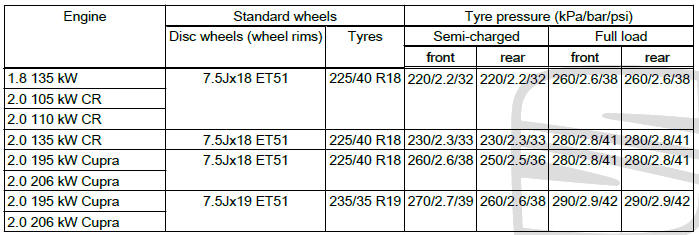

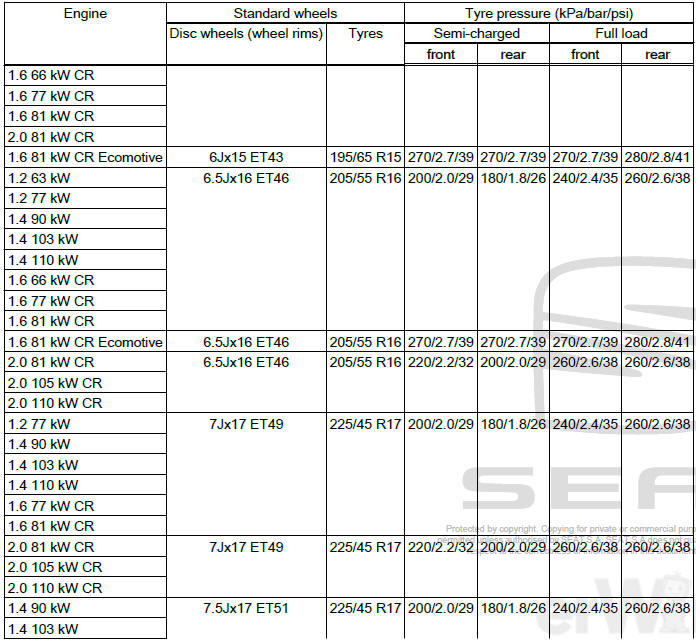

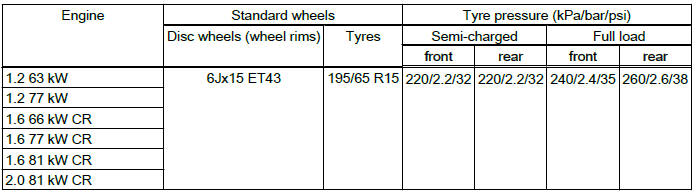

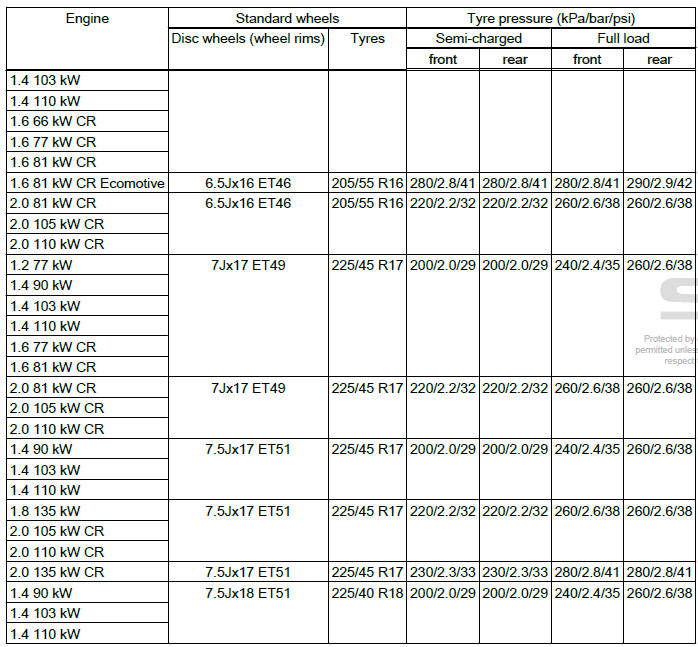

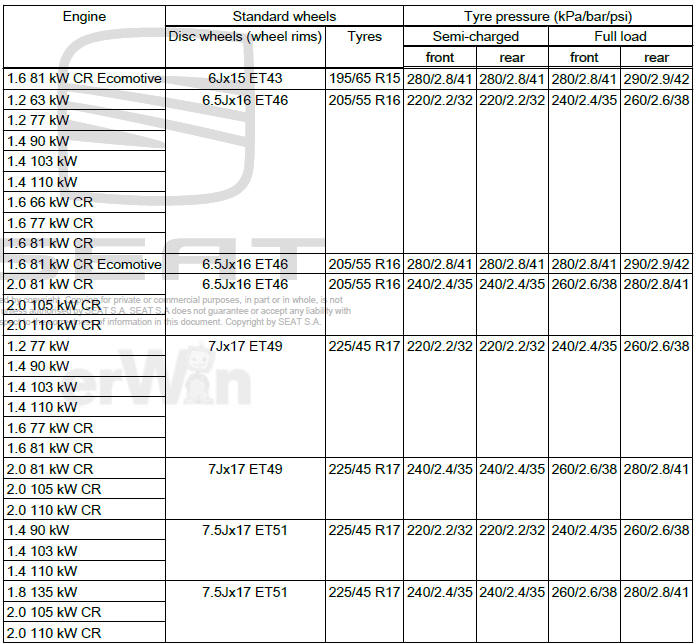

Data chart Leon and Leon SC, excluding Great Britain

Maintenance

Maintenance

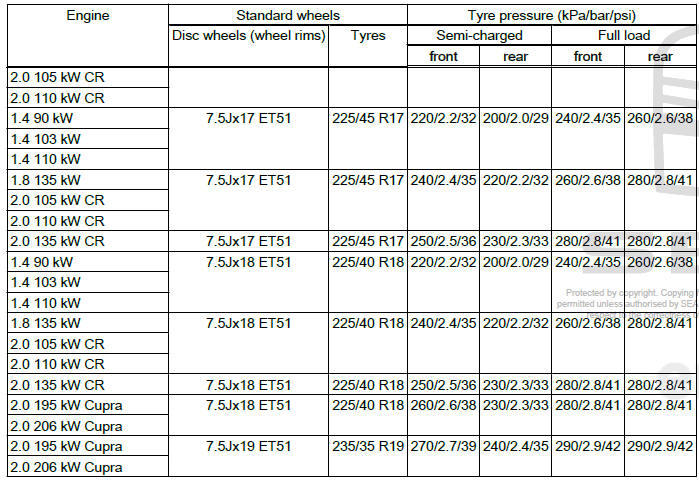

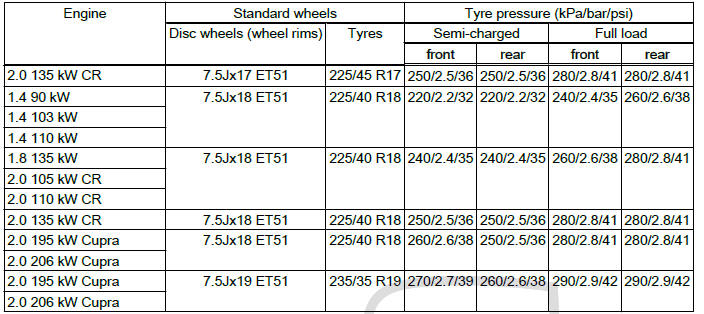

Data chart Leon and Leon SC, Great Britain only

Maintenance

Maintenance

Maintenance

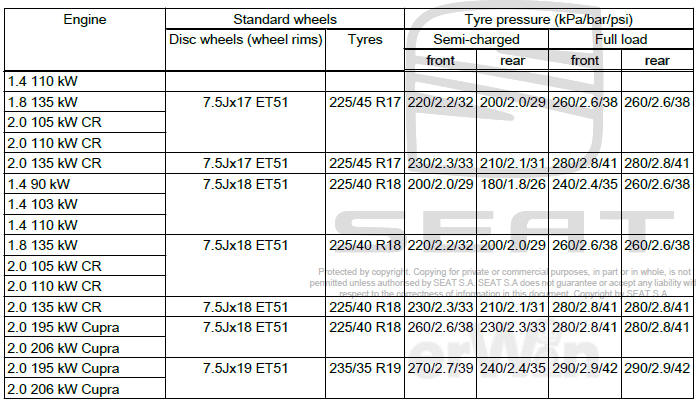

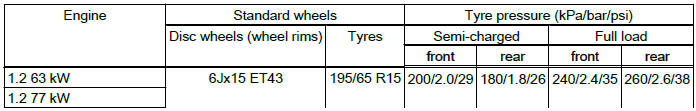

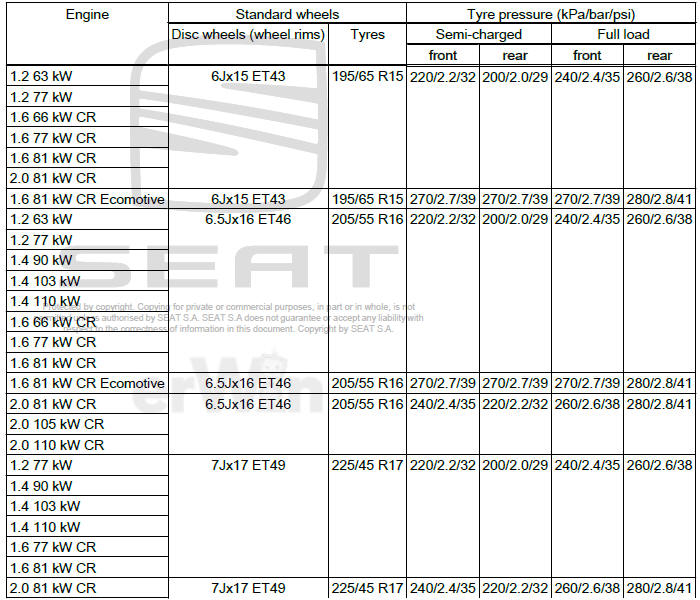

Data chart Leon ST, excluding Great Britain

Maintenance

Maintenance

Maintenance

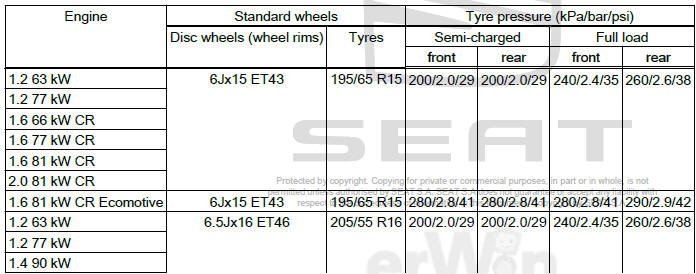

Data chart Leon ST, Great Britain only

Maintenance

Maintenance

Maintenance

Tyre pressure as of MY 16 (week 22/2015)

NOTICE The mandatory tyre pressures for the respective model can also be found on a sticker attached to the inside of the tank flap or to the B-pillar.

Check for the presence of the inflation pressure sticker at delivery inspection.

If the inflation pressure sticker is missing, proceed as follows: Look up the correct part number for the respective vehicle in the - Electronic parts catalogue .

Using the part number, locate the respective inflation pressures in the inflation table.

Spare wheel with standard tyres: Observe the maximum designated tyre pressure for the vehicle.

WARNING

Depending on the vehicle, the tyre pressure can be adapted to a partial load for better driving comfort (comfort tyre pressure).

When driving with the comfort tyre pressure, fuel consumption may increase slightly.

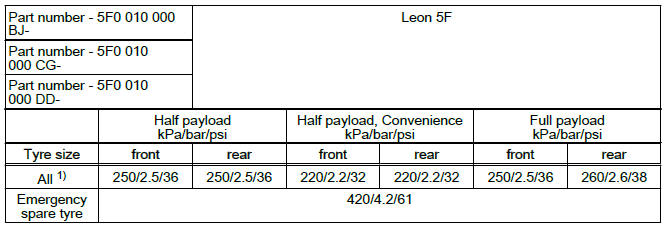

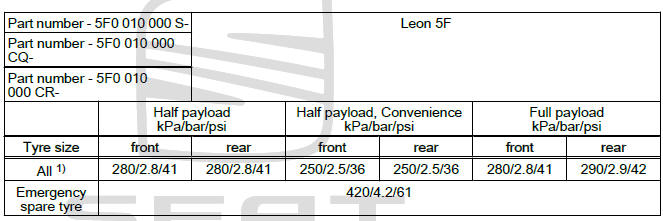

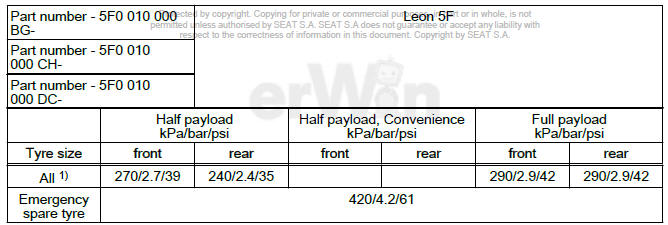

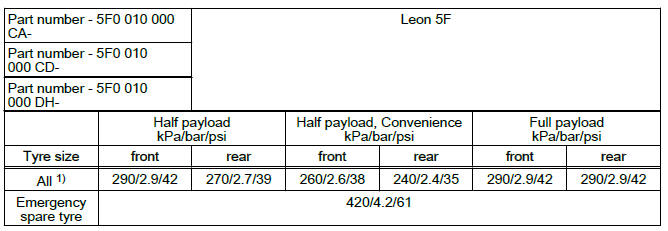

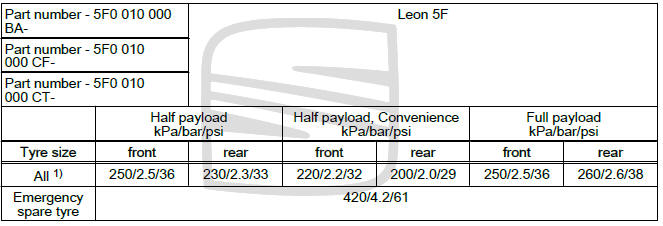

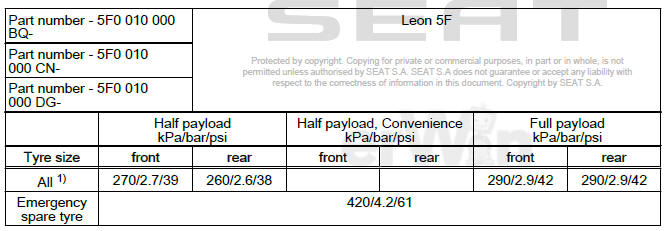

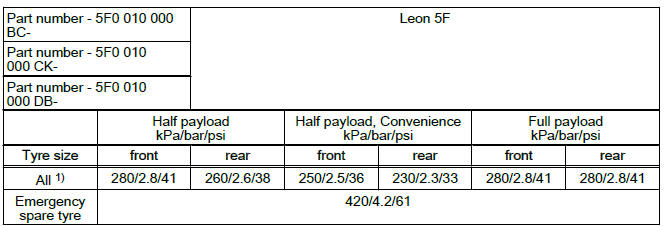

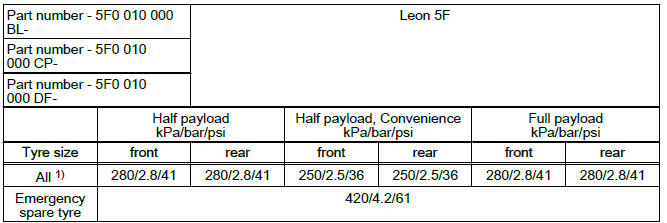

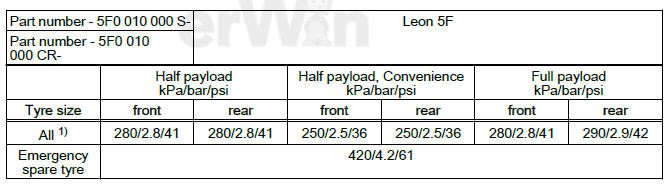

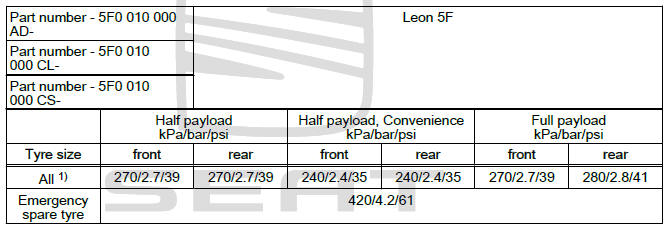

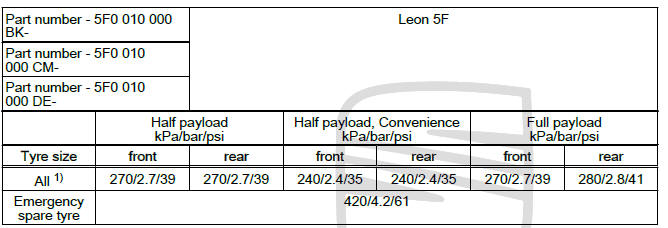

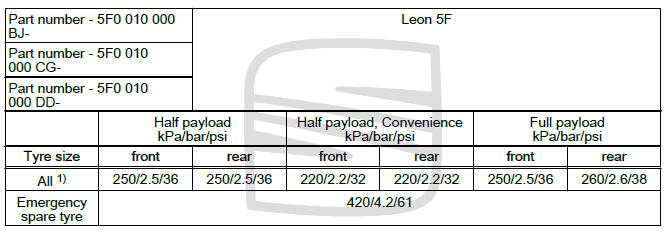

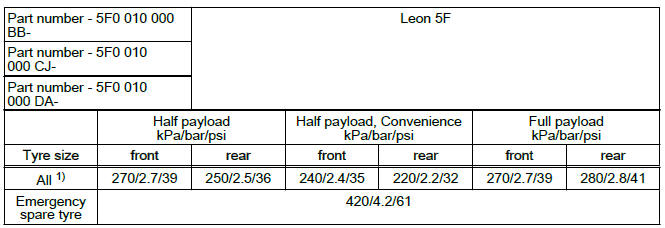

Data table for Leon and Leon SC

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

Maintenance

1) Valid for all authorised wheel/tyre combinations.

    Check age of the tyre
    NOTICE All tyres and wheels (front and rear) must be of same type and size. On four-wheel drive vehicles you must also ensure that all tyres are made by the same manufacturer and have the same tre ...
