Seat Leon >> Engine oil: checking levels
SEAT Leon Service and Repair Manual / Maintenance / Description of work / Engine oil: checking levels
Preconditions:
- Engine oil temperature min. 60 ВєC
- Vehicle standing on a flat surface
- After shutting off engine, wait at least 3 minutes so that the oil can flow back into the sump.
- Pull out the dipstick, wipe with a clean cloth and insert again as far as it will go.
- Pull oil dipstick out again and read oil level.
NOTICE Observe environmental requirements for disposal.

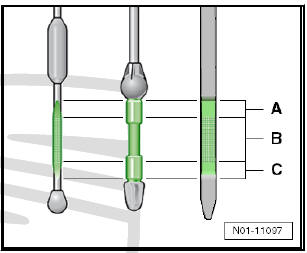

Markings on oil dipstick:
- - Oil must not be replenished.
- - It is not necessary to top up the oil. However, the oil can be topped up, whereby it must be ensured that the oil level does not exceed area -A-.
- - oil must be added. The oil level must then lie in the striped area -B-.
NOTICE A danger exists of damaging the catalytic converter when oil level is above area -A-.
- If it is necessary to add engine oil, observe the specifications.
Engine oil standards
WARNINGOnly SEAT approved engine oils must be used; see
applicable
data under - ServiceNet, Documentation, Vehicle Engineering,
Approved Engine Oils .
7) Longlife oil can be u ...
Multi-purpose additive for petrol fuels:
add
NOTICE
Only applicable for Chinese and Russian market.
Use only additives in accordance with the standards VW
507 53 A or VW 507 53 B.
Observe the dosing instructions on the additive container ...
