Installation and removal of the headlight range thumb wheel E102, ►12.12

Special tools and workshop equipment required

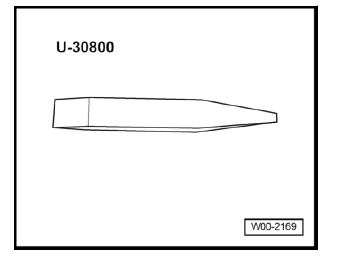

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

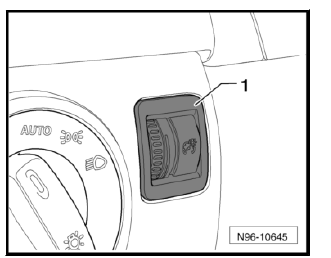

  • Remove the dash panel: pry out the headlight range control thumb wheel - E102- -1- using the lever - U30800- carefully.

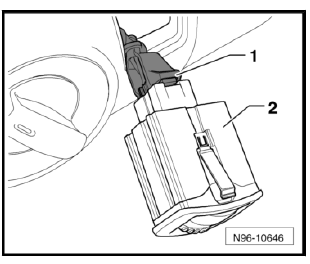

  • Release and separate connector -1- and remove the headlight range control thumb wheel - E102- -2-.

Installing

Installation takes place in reverse order.

Installation and removal of the headlight range thumb wheel E102, 01.13►

Special tools and workshop equipment required

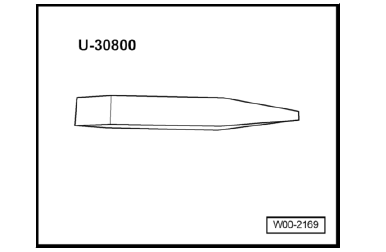

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Open the lower cover on the driver's side.
  • Push on both sides to loosen the brake from its cover; open it completely.
  • Connector of the thumb wheel for the headlight range control - E102- through the opening in the lower cover.

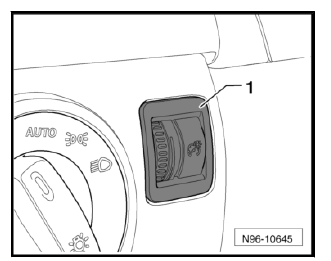

  • Remove the dash panel: pry out the headlight range control thumb wheel - E102- -1- using the lever - U30800- carefully.

Installing

  • Lock the thumb wheel of the headlight range control - E102-
  • Connect the connector of the thumb wheel of the headlight range control - E102- through the opening in the lower cover.
  • Close the lower cover on the driver's side.
