Seat Leon >> Remove and install EX1 light rotation switch.

Remove and install EX1 light rotation switch, ►12.12

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

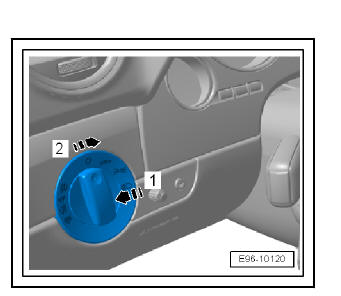

  • Press light switch -arrow 1- and at the same time turn it to right -arrow 2-.
  • Keep the switch in this position.

Lights, bulbs, switches - interior

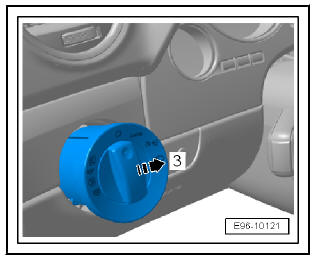

  • Pull light switch out of switch housing -arrow 3-.

Lights, bulbs, switches - interior

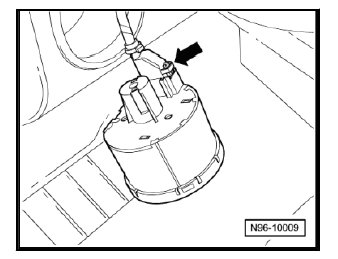

  • Release connector -arrow- and disconnect.

Installing

  • Fit connector to light switch.

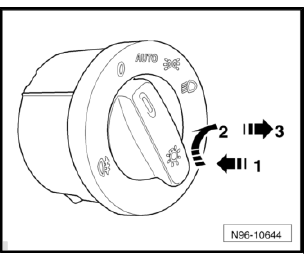

  • Hold the light switch tight, press on the rotary handle -arrow 1- and turn this slightly to the right -arrow 2-.
  • Leave the rotary grip in this position and insert light switch in dash panel.
  • Turn rotary grip to "0" position, release and engage switch.

Remove and install EX1 light rotation switch, 01.13►

Removing

  • Disconnect ignition and all electrical loads, and remove ignition key.
  • Open the lower cover on the driver's side.
  • Push on both sides to loosen the brake from its cover; open it completely.
  • Disconnect the connector of the light switch - E1- through the opening in the lower cover.

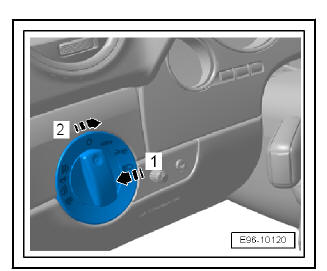

  • Press light switch -arrow 1- and at the same time turn it to right -arrow 2-.
  • Keep the switch in this position.

Lights, bulbs, switches - interior

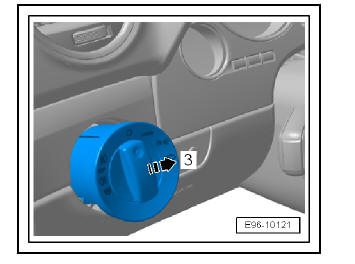

  • Pull light switch out of switch housing -arrow 3-.

Lights, bulbs, switches - interior

Installation:

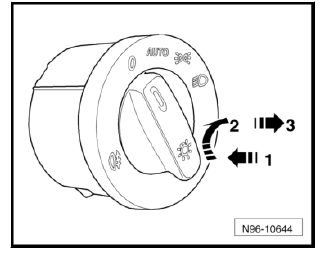

  • Hold the light switch tight, press on the rotary handle -arrow 1- and turn this slightly to the right -arrow 2-.
  • Leave the rotary grip in this position and insert light switch in dash panel.
  • Turn rotary grip to "0" position, release and engage switch.
  • Connect the connector of the light switch - E1- through the opening in the lower cover.
  • Close the lower cover on the driver's side.
