Seat Leon >> Removing and installing switches in dash panel

Special tools and workshop equipment required

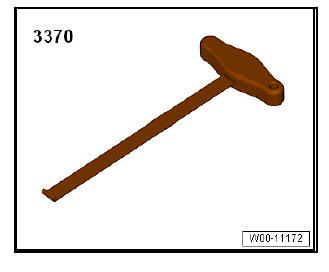

  • Lever for the front-end - 3370-

Lights, bulbs, switches - interior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Open the cover of the centre console shelf.

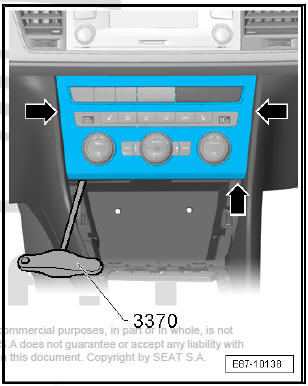

  • Using the hook for the front end - 3370- , loosen the operating unit at the points -arrows- and remove.

Note The plug connectors of the heating control unit - J65- , Climatronic control unit - J255- or Air conditioning control unit - J301- are not displayed for better representation.

Lights, bulbs, switches - interior

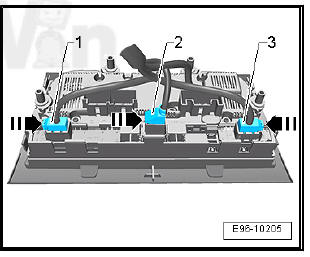

  • Disconnect the electric plug of the switch to be removed -1-, -2- or -3- and press on the lock -arrow-.

Lights, bulbs, switches - interior

  • Carefully disengage the snap arm of the switch to be removed -Arrows- and remove the module in -the direction- of the arrow.

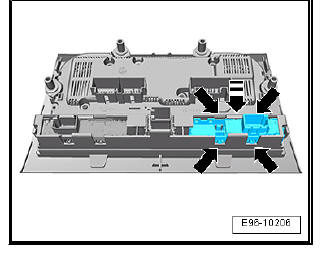

  • Park assist switch - E266- :
  • Switch module for driving mode selection - E592-
  • Switch for Start-Stop Operation - E693-

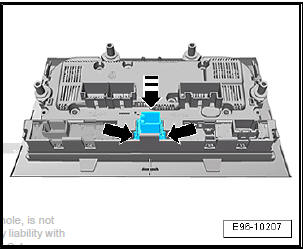

Lights, bulbs, switches - interior

  • Indicator lamp for hazard warning light - K6-

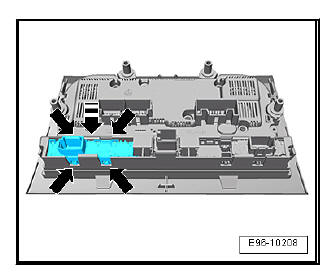

Lights, bulbs, switches - interior

  • Front passenger side switched off airbag warning lamp - K145-
  • Front passenger side airbag warning lamp - K286-

Installation:

Installation is carried out in reverse order.

Lights, bulbs, switches - interior

Removing and installing glove compartment light switch - E26-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove glove compartment .

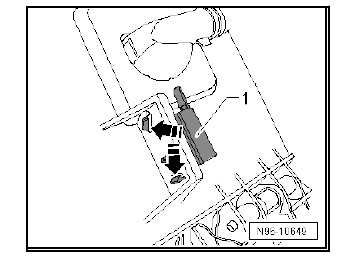

  • Undo the retaining clamps -arrows- and remove the glove compartment light switch -1-.

Installation:

Installation is carried out in reverse order.
