Seat Leon >> Removing and installing luggage compartment aerial for entry and start system - R137-

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - exterior / Entry and start authorisation / Removing and installing luggage compartment aerial for entry and start system - R137-

Special tools and workshop equipment required

  • Lever - 80 200-

Lights, bulbs, switches - exterior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove rear bench seat .
  • Fold back floor covering.

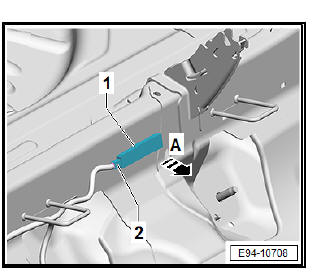

  • Pry off the luggage compartment aerial for entry and start system - R137- -1- using the lever - 80 200- in the -direction of arrow A- from the body.
  • Release connector -2- and unplug.

Installation

Install in reverse order.
