Seat Leon >> Removing and installing rear bumper aerial for entry and start authorisation - R136-

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - exterior / Entry and start authorisation / Removing and installing rear bumper aerial for entry and start authorisation - R136-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove rear bumper cover.

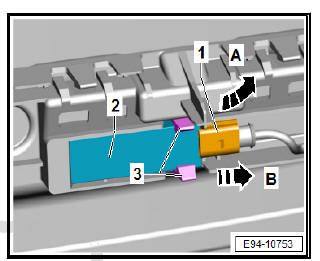

Note Depending on the model, the aerial in the rear bumper for access and start authorization - R136- is aligned the other way .

  • Unlock tabs -3-.
  • Turn the luggage compartment aerial for entry and start system - R136- -2- slightly in the -direction of arrow A-.
  • Pull out the luggage compartment aerial for entry and start system - R136- -2- in the -direction of arrow B- from the retainers -3-.
  • Release connector -1- and unplug.

Installation

Install in reverse order.
