Seat Leon >> Removing and installing interior aerial 1 for entry and start authorisation - R138-

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - exterior / Entry and start authorisation / Removing and installing interior aerial 1 for entry and start authorisation - R138-

Special tools and workshop equipment required

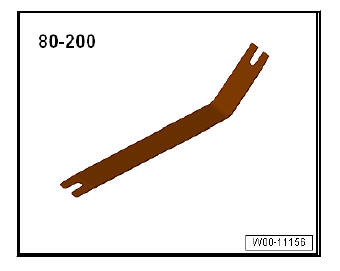

  • Lever - 80 200-

Lights, bulbs, switches - exterior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove centre console cover .

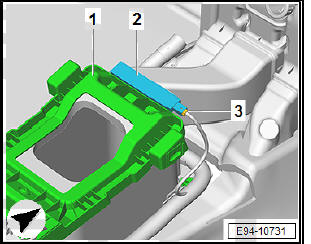

  • Pry off the interior aerial 1 for entry and start system - R138- -2- using the lever - 80 200- from the bracket -1-.
  • Release connector -3- and unplug.

Installation

Install in reverse order.
