Seat Leon >> Assembly overview - alternator

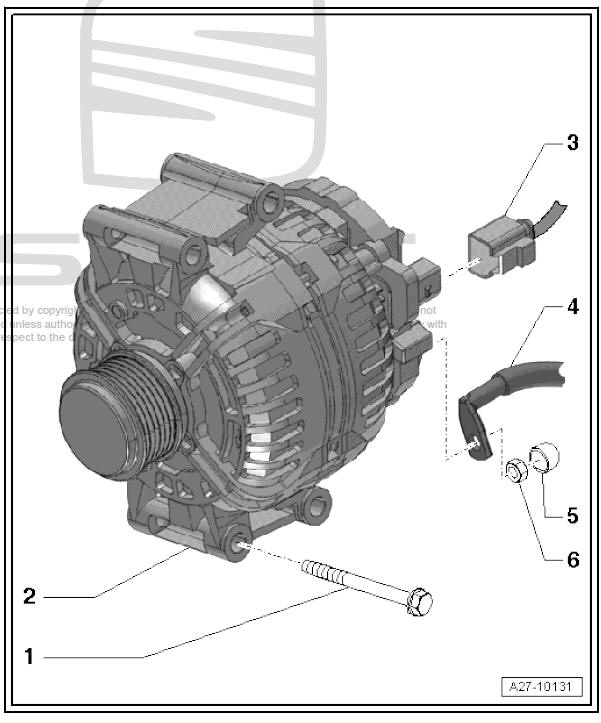

Assembly overview: Alternator without sliding bushes

Starter, current supply, CCS

  1. - Screw
    • 4 units.
    • 23 Nm
  2. - Alternator
    • Removal and installation
    • repairs
  3. - Electric connector
  4. - Terminal 30/B+
  5. - Cover
  6. - Nut
    • 20 Nm

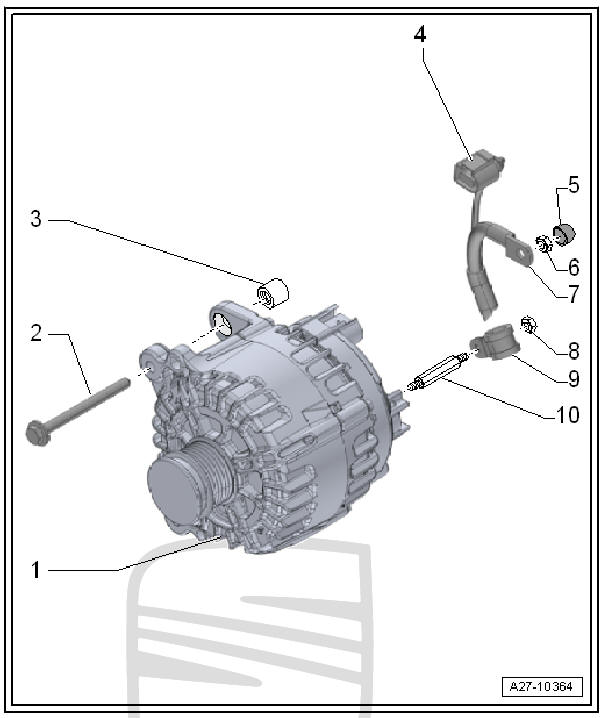

Assembly overview: Alternator with sliding bushes

Starter, current supply, CCS

  1. - Alternator
    • Removal and installation
    • repairs
  2. - Screw
    • 2 units.
    • 23 Nm
  3. - Sliding bush
    • 2 units.
    • Ensure that bushes slide freely, as the clamping pressure of a stiff bush will be insufficient even when the correct tightening torque is applied
  4. - Electric connector
  5. - Cap
  6. - Nut
    • 20 Nm
  7. - Terminal 30/B+
  8. - Nut
    • 3.2 Nm
  9. - Clamp
  10. - Threaded pins
