Seat Leon >> Exploded view - impact bar

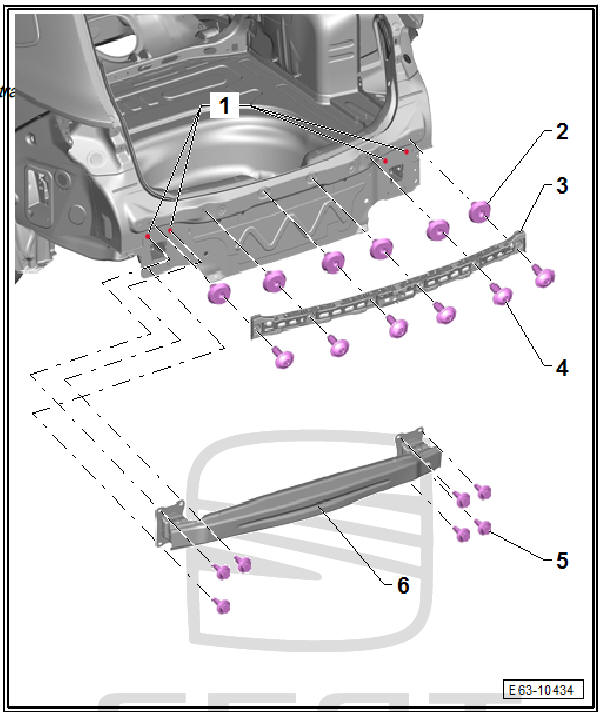

Cross brace of the rear bumper cover, 3 and 5 door: assembly overview

Bumpers

  1. - Cavity wax - AKR.308.SP5-

Note To prevent water penetration

  1. - Tight spreader block
    • 5 off
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Moulding attachment
  2. - Bolt.
    • 5 off
    • 2.5 Nm
  3. - Bolt.
    • 3 + 4 each
    • 20 Nm
  4. - Rear crossbeam

Removing

  • Remove the bumper trim.
  • Remove bolts.
  • Remove the rear cross member.

fitting

Installation is done in reverse order of removal operations.

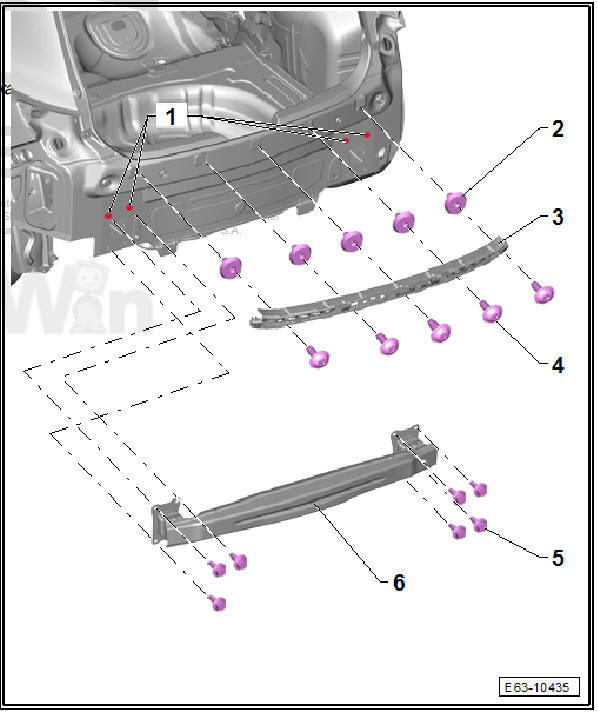

Model ST rear bumper cross piece: exploded view

Bumpers

  1. - Cavity wax - AKR.308.SP5-

Note To prevent water penetration

  1. - Tight spreader block
    • 6 off
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Moulding attachment
  2. - Bolt.
    • 6 off
    • 2.5 Nm
  3. - Bolt.
    • 3 + 4 each
    • 20 Nm
  4. - Rear crossbeam

Removing

  • Remove the bumper trim.
  • Remove bolts.
  • Remove the rear cross member.

fitting

Installation is done in reverse order of removal operations.

    Exploded view of bumper cover
    Rear bumper trim, three and five-door models: exploded view - Tight spreader block 5 off DANGER!Risk of ingress of exhaust fumes in the passenger compartment Tak ...

    Remove and install securing strip
    Securing strip, vehicles with 3 and 5 doors: removing and fitting Special tools and workshop equipment required Torque wrench - V.A.G 1331- Removing Remove the bumper trim. Release co ...
