Removing
Note A second mechanic is required for removing and installing assembly frame.
- Remove moulded headlining.

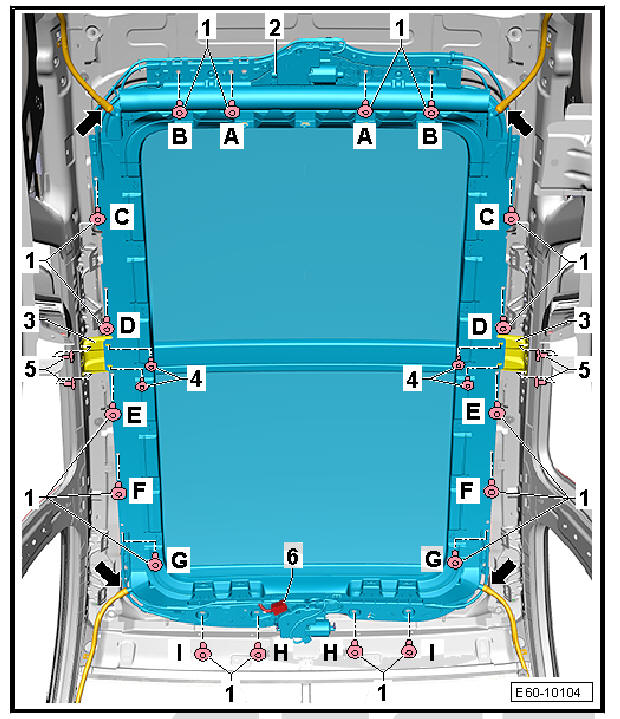

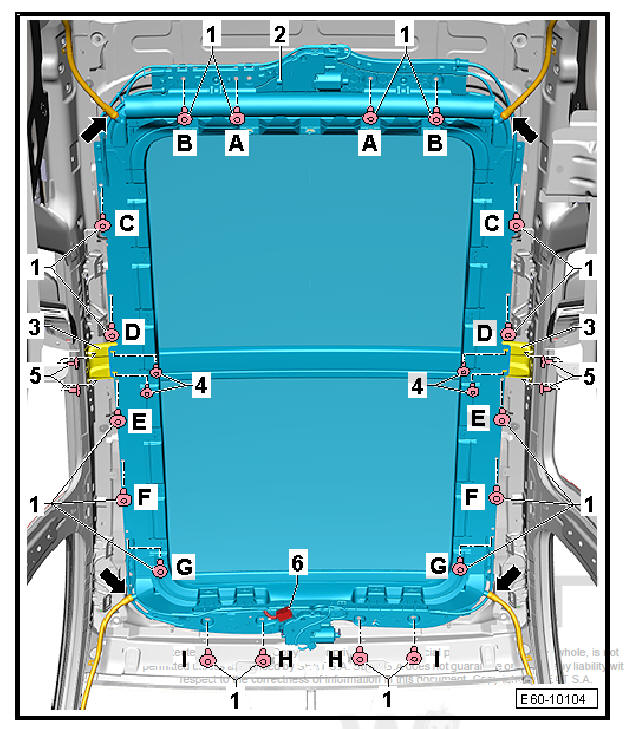

- Pull water drain hoses off connecting pieces -arrows- on mounting frame -2-.
- Remove bolts -4- and -5- and remove the bracket -3-.
- Disconnect connector to wiring harness on sliding roof motor -5-.
- Loosen bolts -1-, but do not remove completely.
Further dismantling requires the help of another mechanic.
- Unscrew bolts -1- and take assembly frame out of vehicle.
fitting

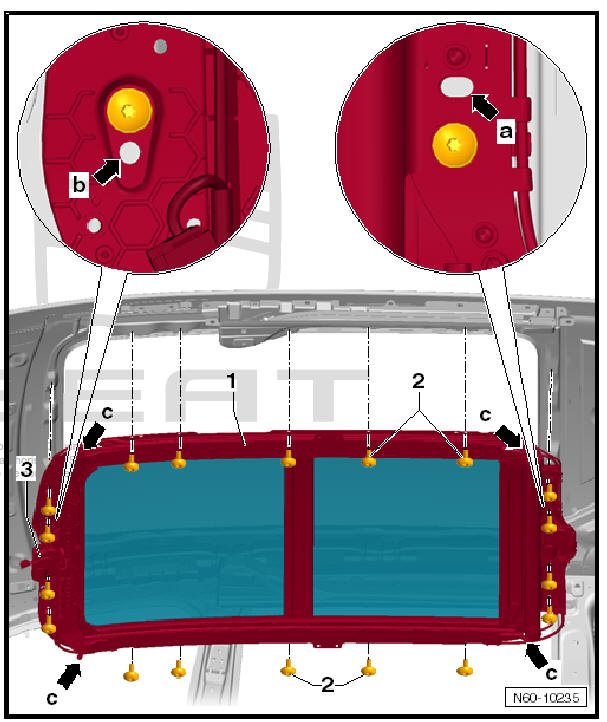

- Lift assembly frame -1- into vehicle with the help of at least a second mechanic.
- When bolting assembly frame, use 2 cylindrical pins (with the smooth side of the drill ø 10mm) to align frame with centring holes -a- (oblong hole) and -b- and with roof.
- Screw in bolts -2- but do not fully tighten.
tighten bolts -1- in the specified sequence from -A- to -I-.
- Bolt tightening torque 8 Nm.
- Fit the bracket -3- and tighten the bolts -4- and -5- in the specified sequence.
- Bolt tightening torque 8 Nm.
Continue installation in reverse order.
- Install moulded headliner.
