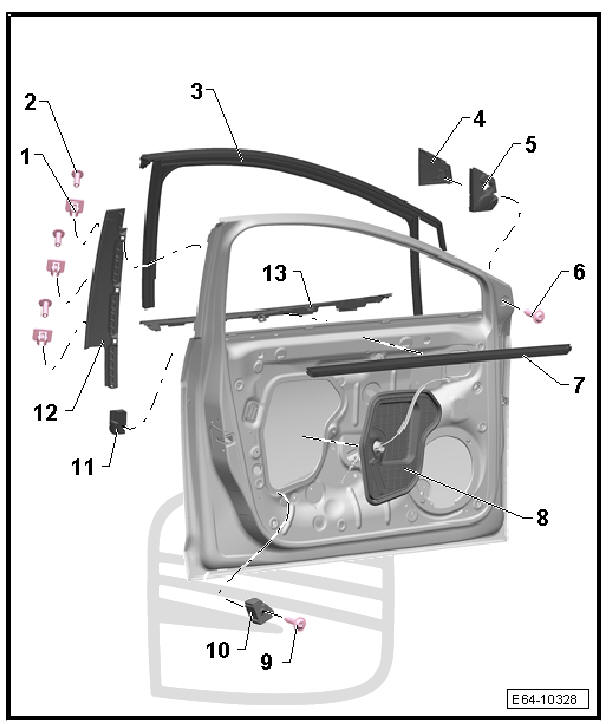

Seat Leon >> Exploded view - door components

Front doors, door components, central locking

  1. - Spreader block
    • 3 off
  2. - Bolt.
    • 3 off
  3. - Front door window guide
  4. - Front door A-pillar outer trim
    • Fixed to the door
  5. - Insulating foam
    • Removing and fitting
  6. - Bolt.
    • 1x
    • 1.3+- 0.2 Nm
  7. - Interior window well joint
  8. - Inside protective cover
  9. - Bolt.
    • 1 off
    • 3.5 Nm
  10. - Separator
    • 1 off
  11. - Seal
    • Pressed in the door frame
  12. - Front door B-pillar outer trim
    • Fixed to the door
  13. - Outer window slot seal

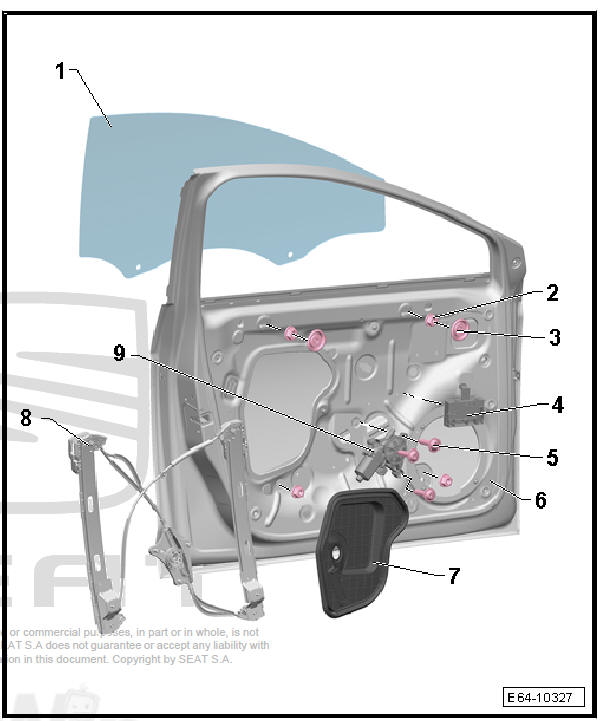

Exploded view - window regulator

Front doors, door components, central locking

  1. - Front door windows
  2. - Nut
    • 4 off
    • 6+- 0.5 Nm
  3. - Sealing plug
    • 5 off
  4. - Driver door control unit
    • Driver door control unit - J386-
  5. - Bolt.
    • 3 off
    • 3+- 0.5 Nm
  6. - Front door
  7. - Inside protective cover
  8. - Window regulator
  9. - Electric window riser motor
    • Window riser motor control unit is not included in the window riser motor.
    Exploded view - door handle and door lock
    Exploded view - door handle and door lock (part I) - Cable for the outside handle (front door) Bowden cable - Bolt. Driver side For the lock cylinder 3.5 Nm - Seali ...
