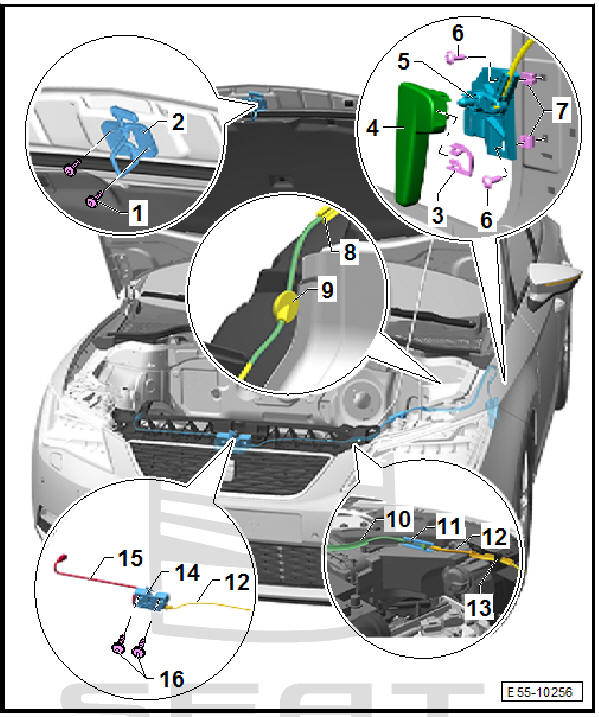

Seat Leon >> Exploded view - Bowden cable

Bonnet, rear lid

  1. - Bolt.
    • 2 off
    • 10+- 1 Nm
    • For fastening the release lever
    • Item 2
  2. - Release handle

Removing

  • Unthread the bolts -2- and remove the release lever.

Adjusting:

  • The release lever can be adjusted to the left or to the right within the extended holes.
  1. - Staple
  2. - Operating lever
  3. - Support plate
    • For operating lever
  4. - Bolt.
    • 2 off
    • 1.5+- 0.2 Nm
    • For fastening the actuating lever
  5. - Spreader block
    • 2 off
  6. - Retaining clip
    • For the cable for opening the bonnet
  7. - Bushing
  8. - Cable for opening the bonnet
    • Side of the actuation lever
  9. - Coupling sleeve
    • For the cable for opening the bonnet
    • Removing and fitting
  10. - Cable for opening the bonnet
    • Locking the bonnet catch
  11. - Retaining clip
    • For the cable for opening the bonnet
  12. - Bonnet catch
    • Adjusting - within oversized holes
    • Checking panel gaps
WARNING

Always replace mounting bolts for bonnet catch with new bolts every time they are loosened.
  1. - Microswitch plug connector
    • For the bonnet catch
  2. - Bolt.
    • 2 off
    • For fixing the bonnet catch
