Seat Leon >> Removing and installing ventilation control

Special tools and workshop equipment required

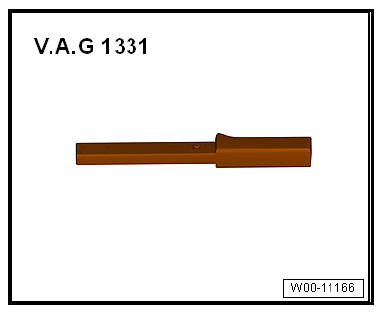

  • Torque wrench - VAG 1331-

Body - front

Removing

  • Remove bumper cover (front)

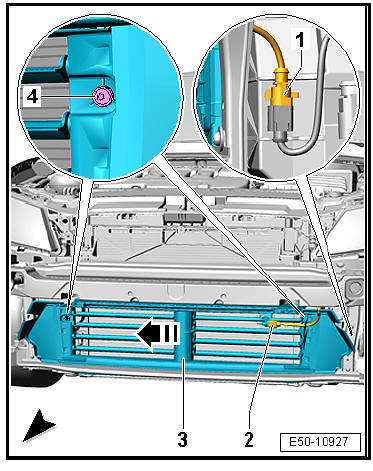

  • Unplug the external temperature sensors -2-.
  • Unplug the ventilation control -1-.
  • Remove pedestrian protection.
  • Remove screws -4-.
  • Remove ventilation control -3- in -direction of arrow-.

fitting

Installation is done in reverse order of removal operations.

Body - front

Removing and installing front air deflector

Special tools and workshop equipment required

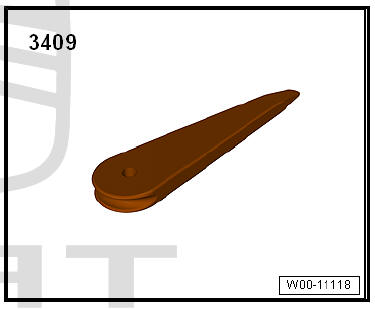

  • Release lever - 3409-

Body - front

Removing

  • Remove bumper cover (front)
  • Remove ventilation control

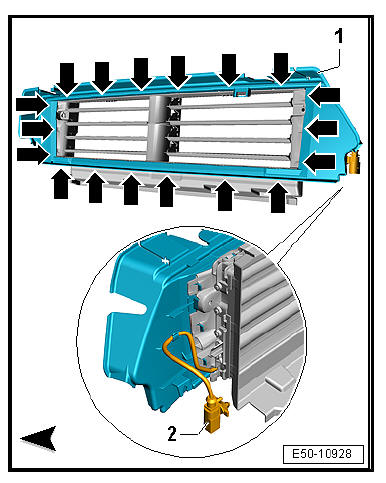

  • Remove line section -2- from the front air deflector -1-.
  • Loosen the clips with the - 3409- lever -arrows- and remove the front air deflector -1-.

fitting

Installation is done in reverse order of removal operations.

Body - front

Removing and installing rear air deflector

Special tools and workshop equipment required

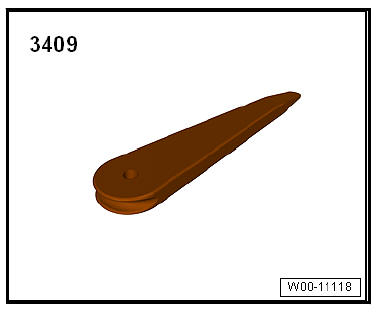

  • Release lever - 3409-

Body - front

Removing

  • Remove bumper cover (front)
  • Remove ventilation control

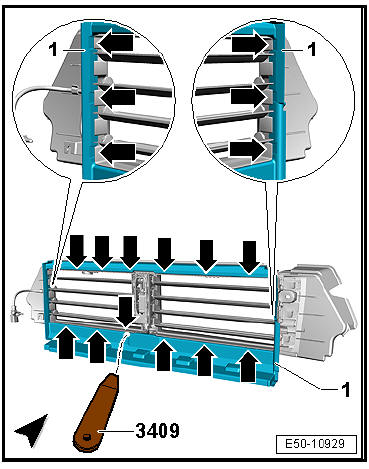

  • Loosen the clips with the - 3409- lever -arrows- and remove the rear air deflector -1-.

fitting

Installation is done in reverse order of removal operations.

Body - front

    Removing and installing lock carrier brace
    Special tools and workshop equipment required Torque wrench - V.A.G 1331- CautionThe following component does not have to be removed when removing the lock carrier brace: ...
