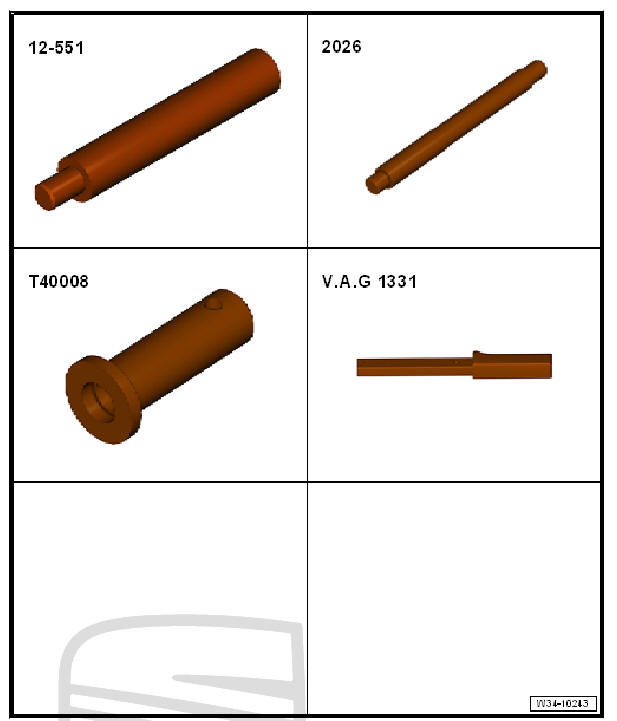

Special tools and workshop equipment required

Controls, housing

Centring chuck - 12-551-
Mandrel - 2026-
Thrust pad - T40008-
Torque wrenches - V.A.G 1331-
Sealant
Equivalent - Electronic spare parts catalogue (ETKA)

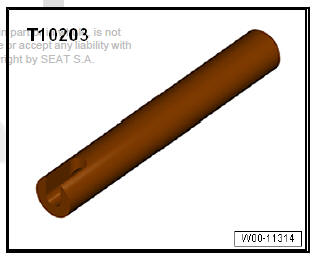

Tube - T10203-

Remove selector mechanism

Controls, housing

Removing angled rod -A- from selector shaft cover

Remove outer part of angled rod.

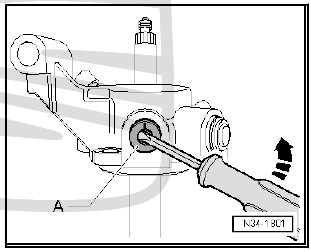

Carefully lever out angled rod with a screwdriver.

Drive angled rod -A- into selector shaft cover

Installation position:

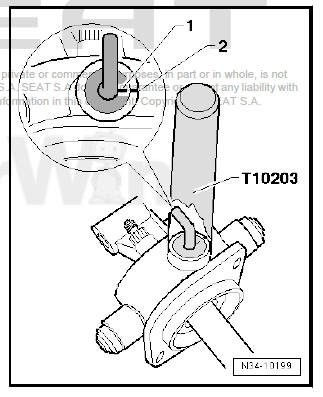

Marking -1- aligns with marking -2- on selector cover.

Install selector mechanism

Controls, housing

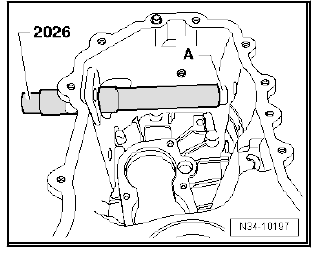

Driving out selector shaft sleeve -A

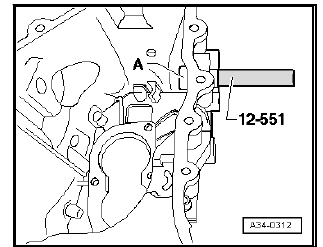

Driving in selector shaft sleeve -A- to stop

Removing and installing selector unit

Gearbox fitted to vehicle Removing Remove battery tray. Remove circlip -1- for gear selector cable -2- from gearbox selector lever -3-. Pull cable-end piece for gear selector cable fro ...

Gearbox housing, clutch housing

Assembly overview - clutch housing - Conical bolt Tightening torque - Flanged shaft with pressure spring Removing and installing Assembly - Bolt Must be renewed if ...
