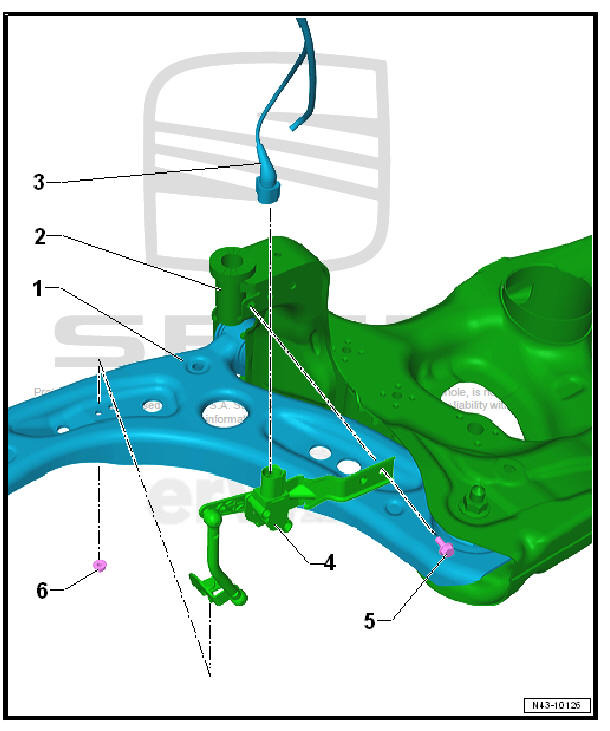

Seat Leon >> Exploded view - front vehicle level sender

Note The front left/right vehicle level sender - G78/G289- is only available as a replacement part complete with coupling rod and upper and lower retaining plates.

Self-levelling suspension

  1. - Wishbone
  2. - Sub-frame
  3. - Electrical connector
  4. - Front left vehicle level sender - G78- and front right vehicle level sender - G289-
    • Complete with attachments
    • Lever must face outwards
    • Removing and installing
    • Perform basic setting of headlights
  5. - Bolt
    • 8 Nm
  6. - Nut
    • Always renew after removing
    • 8 Nm

Assembly overview - rear vehicle level senders

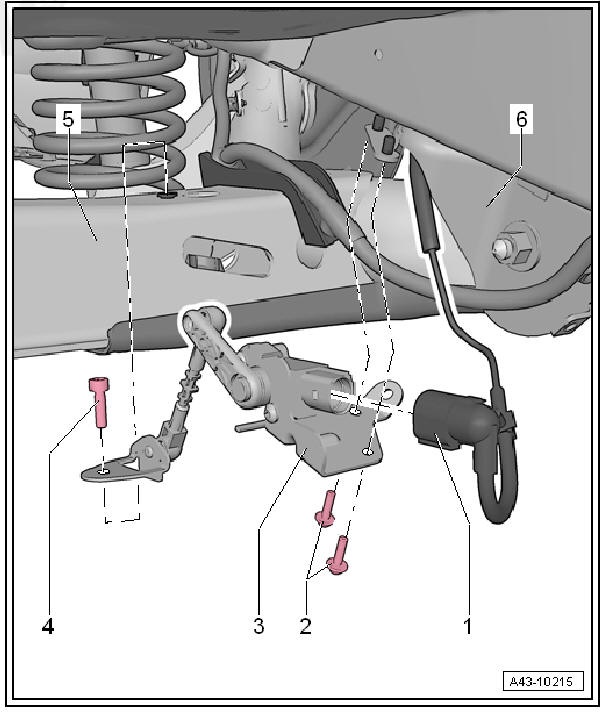

Assembly overview - rear vehicle level sender, torsion beam axle

Note The rear left vehicle level sender - G76- is only available as a replacement part complete with coupling rod and upper and lower retaining plates.

Self-levelling suspension

  1. - Electrical connector
  2. - Bolt
    • 5 Nm
  3. - Vehicle level sender, left side of the rear part - G76-
    • Removing and installing
    • Perform basic setting of wheel damper electronics - Vehicle diagnostic tester.
    • Perform basic setting of headlights ⇒ Electrical system; Rep. gr. 94 ; Headlights; Adjusting headlights
  4. - Bolt
    • 8 Nm
  5. - Axle beam
  6. - Mounting bracket

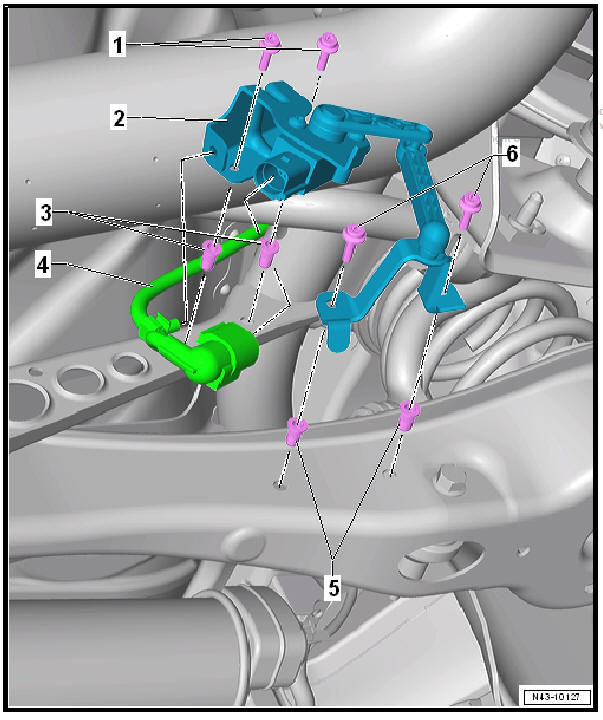

Assembly overview - rear vehicle level senders, multi-link suspension, frontwheel drive

Note The vehicle level sender is available as a replacement part only complete with coupling rod and upper and lower retaining plates.

Self-levelling suspension

  1. - Bolt
    • 5 Nm
  2. - Vehicle level sender (rear)
    • Complete with attachments
    • Lever must face outwards
    • Removing and installing
    • Perform basic setting of wheel damper electronics
    • Vehicle diagnostic tester
    • Perform basic setting of headlights
  3. - Pop rivet nut
  4. - Electrical connector
  5. - Pop rivet nut
  6. - Bolt
    • 5 Nm

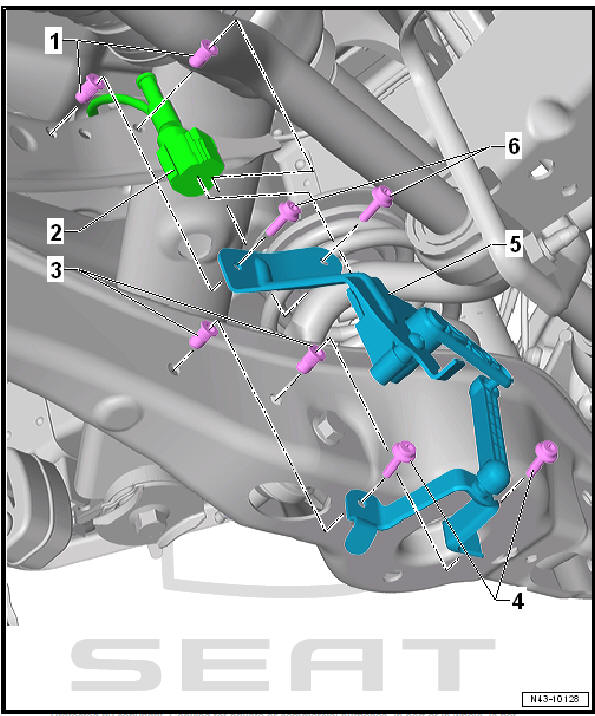

Assembly overview - rear vehicle level senders, multi-link suspension, fourwheel drive

Note The vehicle level sender is available as a replacement part only complete with coupling rod and upper and lower retaining plates.

Self-levelling suspension

  1. - Pop rivet nut
  2. - Electrical connector
  3. - Pop rivet nut
  4. - Bolt
    • 5 Nm
  5. - Vehicle level sender (rear)
    • Complete with attachments
    • Lever must face outwards
    • Removing and installing
    • Perform basic setting of wheel damper electronics
    • Vehicle diagnostic tester
    • Perform basic setting of headlights
  6. - Bolt
    • 5 Nm
    Removing and installing front vehicle level senders -G78- / -G289-
    Special tools and workshop equipment required Torque wrenches - V.A.G 1410- Removing Disconnect connector -1- on front left vehicle level sender - G78- and/or front right vehicle level ...
