Seat Leon >> Removing and installing rear body acceleration sender - G343-
SEAT Leon Service and Repair Manual / Running gear, axles, steering / Self-levelling suspension / Electronic damping control / Removing and installing rear body acceleration
sender - G343-
Special tools and workshop equipment required

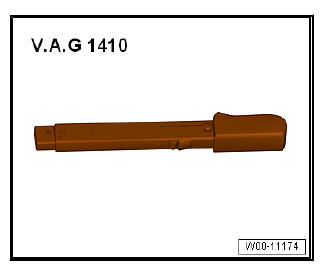

- Torque wrenches - V.A.G 1410-
Removing
- Remove left side panel trim in luggage compartment.

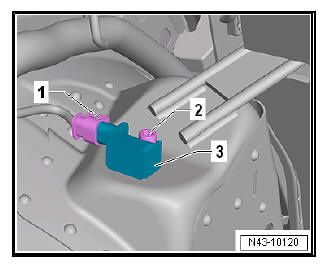

- Release electrical connector -1- and pull off.
- Undo bolt -2- and remove rear body acceleration sender - G343- -3-.
Installing
Carry out installation in the reverse sequence, noting the following:

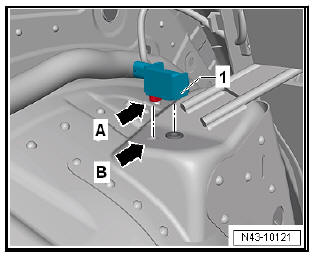

- Insert rear body acceleration sender - G343- -1- so that lug -arrow A- engages into hole -arrow B-.
- Perform basic setting of wheel damper electronics - Vehicle diagnostic tester.
Specified torques
