Seat Leon >> Removing and installing coupling rod (for anti-roll bar)
SEAT Leon Service and Repair Manual / Running gear, axles, steering / Rear suspension / Suspension link, track rod / Removing and installing coupling rod
(for anti-roll bar)
Special tools and workshop equipment required
- Torque wrenches - V.A.G 1331-

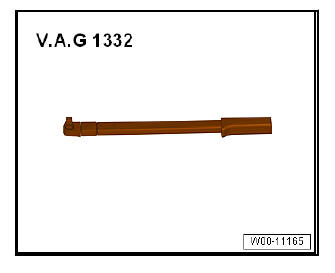

- Torque wrenches - V.A.G 1332-
Removing
- Remove rear wheel on affected side.

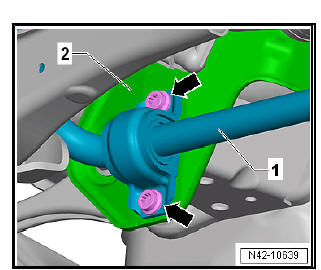

- Remove bolts -arrows- for anti-roll bar -1-.

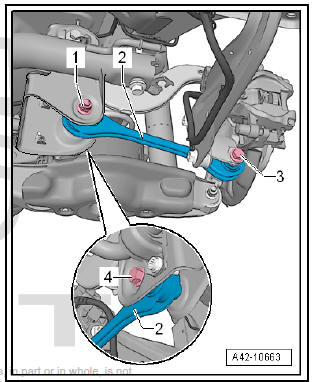

- Unscrew nut -1- and bolt -3- by a few turns.
- Unscrew bolt -3-.
- Unscrew nut -1- and remove bolt -4- towards rear. At the same time, push the stabiliser upwards.
- Take out track rod -2-.
Installing
Carry out installation in the reverse sequence, noting the following:
Specified torques
- Before tightening bolt securing track rod, obtain the same distance between wheel hub centre and lower edge of wheel housing as measured before dismantling.
- Check wheel alignment.
Removing and installing lower transverse
link
Special tools and workshop equipment required
Torque wrenches - V.A.G 1332-
Removing
Remove rear wheel on pertinent side.
Vehicles with vehicle level senders
Remove bolts -1-.
Re ...
