Seat Leon >> Engine code and engine number
NOTICE The engine number consists of up to nine (alphanumeric) characters.
The first section (maximum of thee letters) are the "engine code"; the second section (6 digits) are the "serial number".
When more than 999 999 engines with the same code were manufactured, the first digit is replaced by a letter.
The "engine code" can is also given on the vehicle data stickers in the Service Schedule and in the spare wheel well or on the luggage compartment floor.
There is also a sticker on the notched belt guard giving the engine code and engine number.
Petrol engines:

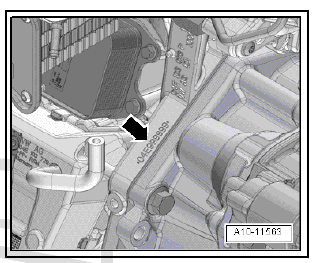

The engine number ("Engine code" and "Serial number") can be found on the left on the joint between engine and gearbox -arrow-.
Diesel engines:

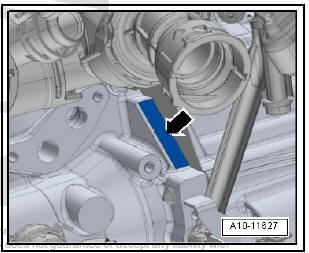

The engine number ("engine code" and "serial number") is at the front of the join between engine and gearbox -arrow-.
Vehicle identification number
Engraved chassis number The chassis number is engraved in the engine compartment, in the upper region of the right-hand wheel housing. Chassis number card The chassis number plate -1-is ...Biodiesel
Only vehicles approved by SEAT or retrofitted for use with biodiesel (PR No. 2G0), may be operated with biodiesel. CAUTIONIf biodiesel is used in a normal engine then the fuel system will ...See also:
Exploded view - vacuum pump
Exploded view - vacuum pump, vehicles
with 1.8-l TSI and 2.0-l TSI engines
Note
The vacuum pump is driven mechanically.
- High-pressure pump
Removing and installing
- Bolt
Tight ...
