Seat Leon >> Type plate

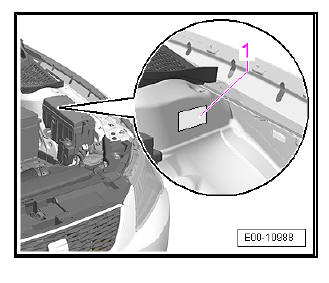

  • The type plate is situated on the left side member inside the engine cavity.

Maintenance

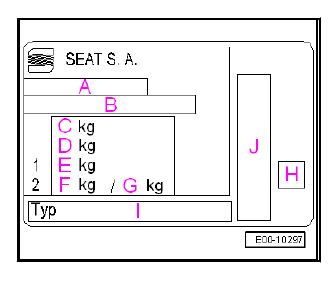

Meaning of sections on plate

  1. - Authorization number signature
  2. - Vehicle identification number
  3. - Maximum permissible weight
  4. - Maximum permissible weight of the unit
  5. - Maximum authorised weight 1st axle
  6. - Maximum permissible weight on the rear axle without trailer
  7. - Maximum permissible weight on the rear axle with trailer
  8. - Fume absorption coefficient
  9. - Type
  10. - Approval information
