Seat Leon >> Passenger's airbag: Check key switch and "ON / OFF" function

SEAT Leon Service and Repair Manual / Maintenance / Description of work / Passenger's airbag: Check key switch and "ON / OFF" function

NOTICE The "Airbag ON/OFF" switch is located in the glove compartment.

Check the function of the activation "ON" and deactivation "OFF" of the front passenger's airbag.

  • Switch off ignition.
  • Insert the ignition key into the switch and rotate the key to the position "OFF".

Maintenance

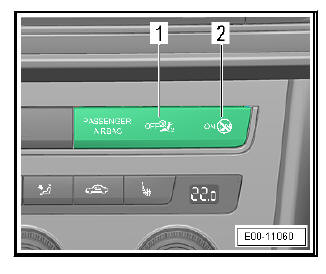

  • Check if the signal lamp illuminates when switching the ignition "OFF" -1-.
  • Switch off ignition.
  • Insert the ignition key into the switch and rotate the key to the position "ON".
  • Check if the signal lamp illuminates when switching the ignition "ON" -2-.

After the ignition is switched on, the signal lamp "ON" illuminates for 60 seconds and then goes off.

  • Switch off ignition.
