Seat Leon >> Service tables for market group A

SEAT Leon Service and Repair Manual / Maintenance / Service tables / Service tables for market group A

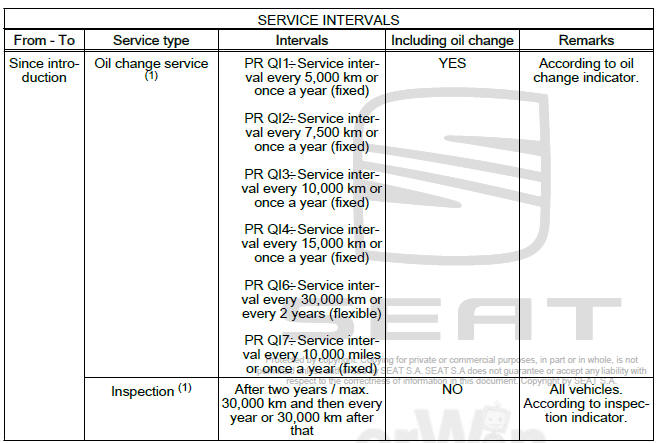

  • Service intervals .

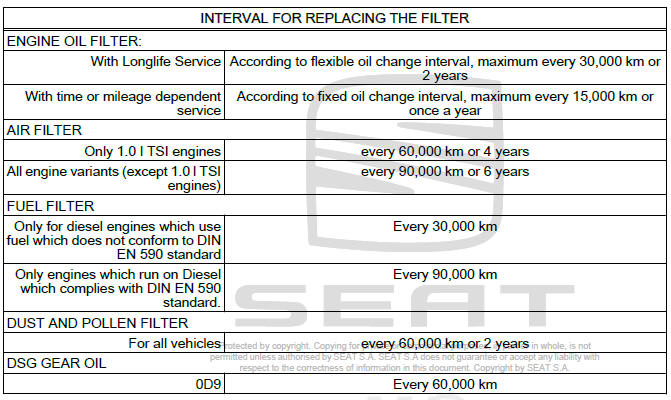

  • Interval for replacing the filter.
  • Interval for replacing the toothed belt .
  • Interval for replacing the spark plugs.
  • Other additional work.

NOTICE

For combined kilometre and time display applies: whichever occurs first.

Depending on conditions under which the vehicle is used and vehicle equipment, extra service work must be performed in addition to the interval service, inspection/service, inspection or extended inspection.

It is also possible to perform additional work outside the service intervals with regard to the entries in the service schedule (or sticker: your next service).

Maintenance

6) (1) There is also a special service which combines the "Inspection and oil change".

Maintenance

INTERVALS FOR REPLACING THE TOOTHED BELT

ENGINES AS OF UP TO REPLACE TOOTHED BELT REPLACE TENSIONING ROLLER
TDI Common Rail Introduction - 210,000 km 210,000 km
TDI Common Rail Introduction - 120,000 km
  • Applies only for vehicles with diesel engine, in countries where there is a great development of dust.
20,000 km
  • Applies only for vehicles with diesel engine, in countries where there is a great development of dust.
TSI 1.0 l, 1.2 l and 1.4 l MPI 1.6 l Introduction - No specified replacement period.

Drive via toothed belt which is to be regularly inspected.

See "Miscellaneous additional tasks"

-



INTERVALS FOR REPLACING THE SPARK PLUGS

ENGINES INTERVAL
All petrol engines
  • With the exception of the African market
60,000 km or 4 years
  • With the exception of the African market
All petrol engines
  • Only for the African market
30,000 km or 2 years
  • Only for the African market



SPECIAL ADDITIONAL WORK

ADDITIONAL WORK

INTERVAL

6-gear DSG gearbox 0D9: change the oil and filter Every 60,000 km
Automatic gearbox 09G: change oil (only 09G gearbox in hot countries) Every 60,000 km
Expanded scope of inspection (only together with the inspection) After 3 years / max. 60,000 km and then every 2 years or 60,000 km after that
Panorama roof: check operation, clean drains and lubricate guides After 3 years / max. 60,000 km and then every 2 years or 60,000 km after that
Particulate filter: checking 210,000 km (first time) and then every 30,000 km
Check toothed belt (only 1.0 l, 1.2 l and 1.4 I TSI engines and 1.6 l MPI engines) At 240.000 km, then every 30,000 km thereafter
Check coolant pump toothed belt (only 1.0 l, 1.2 l and 1.4 I TSI engines and 1.6 l MPI engines) At 240.000 km, then every 30,000 km thereafter
Front axle differential lock: Oil change (only Cupra models) Every 3 years
All-whee-l drive coupling: change oil (only vehicles with all-wheel drive) Every 3 years
Brake fluid and clutch: Renew After 3 years (first time) and then every 2 years
Natural gas system: Visual inspection of natural gas tank for corrosion and implementation of a leakage test (only vehicles with natural gas)

WARNING: Must only be carried out by specially trained personnel.

After 3 years (first time) and then every 2 years
Check condition of cap and natural gas filler neck; if necessary clean and check seal (only for vehicles with natural gas) After 3 years (first time) and then every 2 years
Natural gas tank: replace (only vehicles with natural gas)

WARNING: Must only be carried out by specially trained personnel.

Every 20 years
    Service tables for market group B and C
    Since in several markets there are market-specific service specifications, the latter are listed as time or mileage dependent additional work and are grouped by the respective market group. NOTICE ...
