Seat Leon >> Overview of fitting locations - operating and display unit

Installation location of the heating and air conditioner control unit components -J301-

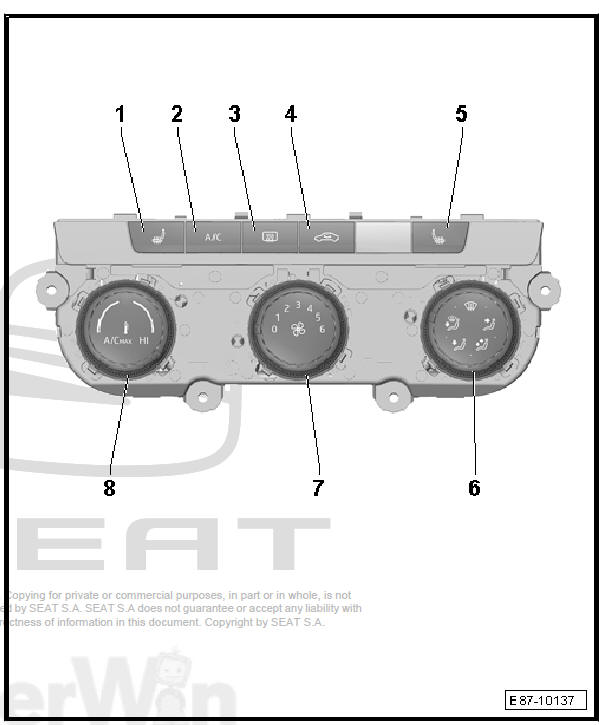

Air conditioning control unit - J301-

Air conditioning system

  1. - Left seat heating button
  2. - AC button for air conditioner compressor
  3. - Heated rear window button
  4. - Air recirculation button
  1. - Rotary control for setting air distribution
  2. - Rotary control for fresh air blower - V2-
  3. - Rotary temperature control

Installation location of the heating and air conditioner control unit components -J255-

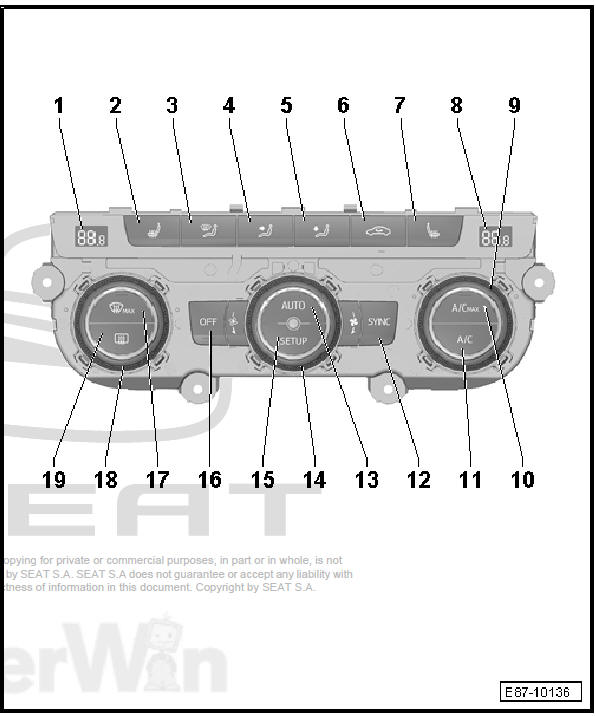

Climatronic control unit - J255-

Air conditioning system

  1. - Digital temperature display
  2. - Right seat heating button
  3. - Button for setting air distribution Up
  4. - Button for setting air distribution Centre
  5. - Button for setting air distribution Down
  6. - Air recirculation button
  7. - Left seat heating button
  8. - Digital temperature display
  9. - Passenger side rotary temperature setting control
  10. - The button AC max is for the maximum output of the air conditioning compressor
  11. - AC button for air conditioner compressor
  12. - SYNC button
  13. - Auto button for automatic air conditioner control
  14. - Rotary control for fresh air blower - V2-
  15. - SETUP button
  16. - The button Off is for switching off the air conditioning compressor
  17. - Defrost mode button
  18. - Driver side rotary temperature setting control
  19. - Heated rear window button
    Control and display unit
    Removing and installing control and display unit Special tools and workshop equipment required Lever for the front-end - 3370- Removal: Note The picture shows a vehicle with Climatronic. ...
