Seat Leon >> Installation and removal of the button for window regulator in back door E700 / E705

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Controls / Installation and removal of the button for window regulator in back door E700 / E705

Special tools and workshop equipment required

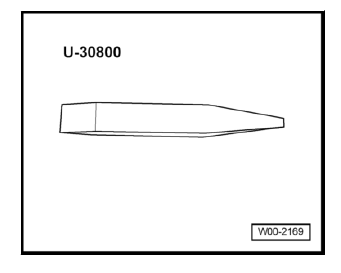

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove back door arm rest.

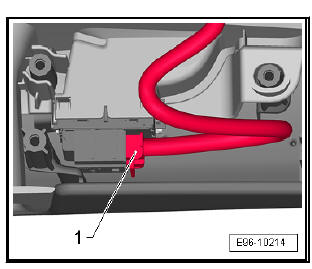

  • Unplug the connector -1- from the window lifter switch.

Lights, bulbs, switches - interior

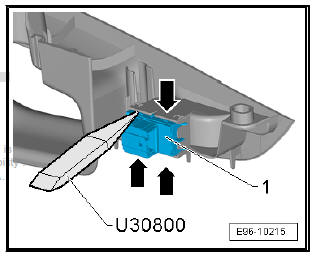

  • Carefully release the locking tabs -arrows- from the mounting frame using the lever - U30800- .
  • Remove the window lifter switch.

Installing

Installation takes place in reverse order.
