Seat Leon >> Removing and installing gear knob
SEAT Leon Service and Repair Manual / 5-speed manual gearbox 0AH / Controls, housing / Selector mechanism / Removing and installing gear knob
Special tools and workshop equipment required
- Hose clip pliers - V.A.G 1275 A-

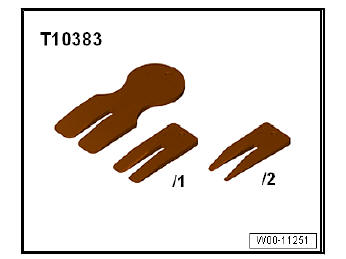

- Wedges - T10383-
Removing

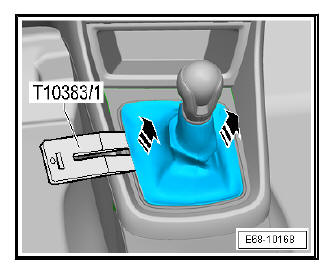

- Using removal wedge -T10383/1- , carefully pry gear lever boot off centre console insert -arrows-.
- Pull boot up and over gear knob.

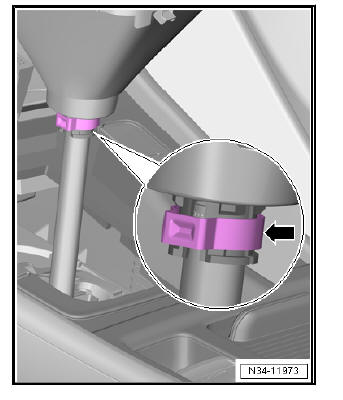

- Open clip -arrow- and pull off gear knob together with boot.
Installing
Carry out installation in the reverse sequence, noting the following:
- Insert gear knob with the dust seal into the gear level all the way to the stop.
- Attach gear knob with O-type clip -arrow- (previous Fig.) to gear lever. For doing this use the hose clip pliers - V.A.G 1275 A- .
Exploded view - selector mechanism
Note
Lubricate bearing positions and sliding surfaces.
For grease allocation.
- Selector shaft with cover
- Oil seal
Must be renewed after
fitting
- Shoe
- Gate relay ...
Gear selection mechanism: removing
and fitting
Special tools and workshop equipment required
Torque wrenches - V.A.G 1331-
Removing
Disconnect battery .
Remove gear knob and gaiter .
Remove centre console mounting .
Remove noise ...
