Seat Leon >> Removing and installing ignition and starter switch
SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - exterior / Switch module of the steering column / Removing and installing ignition and
starter switch
Removing
- Switch off ignition and all electrical consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles
- Remove steering column trim (bottom) .

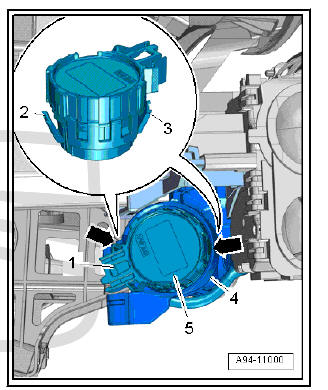

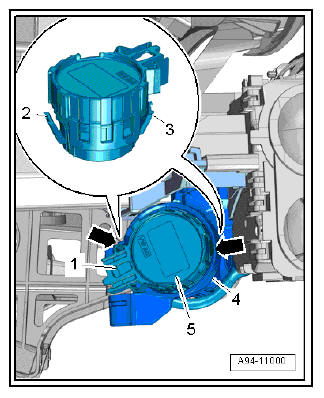

- Unplug the electrical connector -1-.
- Unlatch the retaining clips -2 and 3- at the recesses -Arrows- in the steering column lock housing -4- by inserting the watchmaker screwdrivers.
If procedure cannot be performed due to limited space, improvise suitable tool (2 bent wires) as described below.

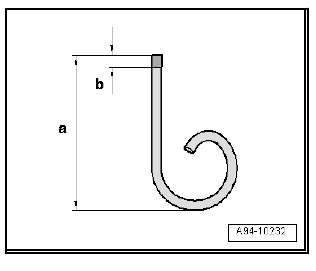

- Bend one end of a welding rod with diam. Ø 1 mm as a loop
and cut down to length -a-.
- Dimension -a- = about 50 mm
- File wire hook so that end is pointed.
- Dimension -b- = 5 mm
- Pull ignition/starter switch - D- -5- out of the steering lock housing. The jeweller screwdrivers or wire pegs must remain inserted while doing so.
Installing
Installation is carried out in the reverse sequence; note the following:
- Insert ignition/starter - D- into steering lock housing until it engages audibly.
