Seat Leon >> Rear window washer system

Assembly overview - rear window washer system

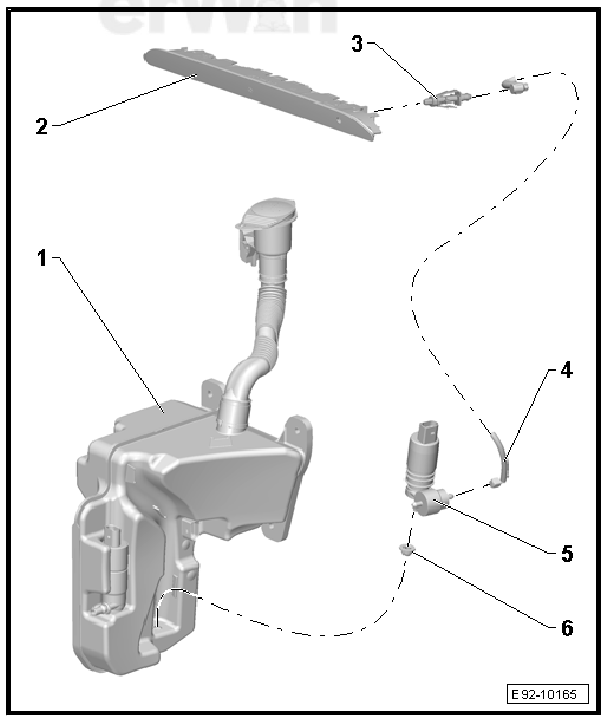

Assembly overview - back windscreen wiper system, vehicles without additional left cooler

  1. - Windscreen and headlamp washer reservoir
    • Removal and installation
  2. - Additional brake light
    • Removal and installation
    • Removing and installing, on spoiler
  3. - Washer jet
    • Removal and installation
    • Adjusting
  4. - Water pipe
    • For rear window washer system
  5. - Windscreen and rear window washer pump - V59-
    • Removal and installation
  6. - Sleeve
    • Renew if damaged.

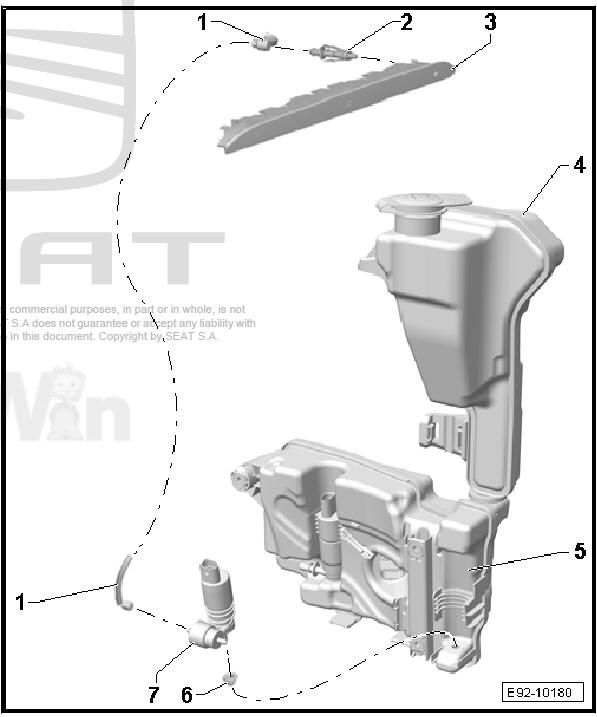

Assembly overview - back windscreen wiper system, vehicles with additional left cooler

Windscreen wash/wipe system

  1. - Water pipe
    • For rear window washer system
  2. - Washer jet
    • Removal and installation
    • Adjusting
  3. - Additional brake light
    • Removal and installation
    • Removing and installing, on spoiler
  4. - Filler neck for the window and headlight washer system reservoir
    • Removal and installation
  5. - Windscreen and headlamp washer reservoir
    • Removal and installation
  6. - Sleeve
    • Renew if damaged.
  7. - Windscreen and rear window washer pump - V59-
    • Removal and installation

Removing and installing the spray jet

The spray nozzle is installed in the lamp for the additional brake light - M25- .

Removing

  • Remove the High-level brake light bulb - M25- .
  • Release both catches -arrows- and pull spray jet -1- to rear out of high-level brake light bulb - M25- .

Installing

  • Installation is carried out in reverse order.
  • Adjusting spray jet.

Spray jet: adjustment

Note In case of uneven spray field due to impurities within the spray jet: remove spray jet and rinse it through with water, opposite to direction of spray. Blowing through in the opposite direction with compressed air is permitted. Do not use any objects for cleaning spray jets!

Adjustment of the wash jet for rear window washer system.
