SEAT Leon Service and Repair Manual / General body repairs, exterior / Exterior equipment / Exterior mirror

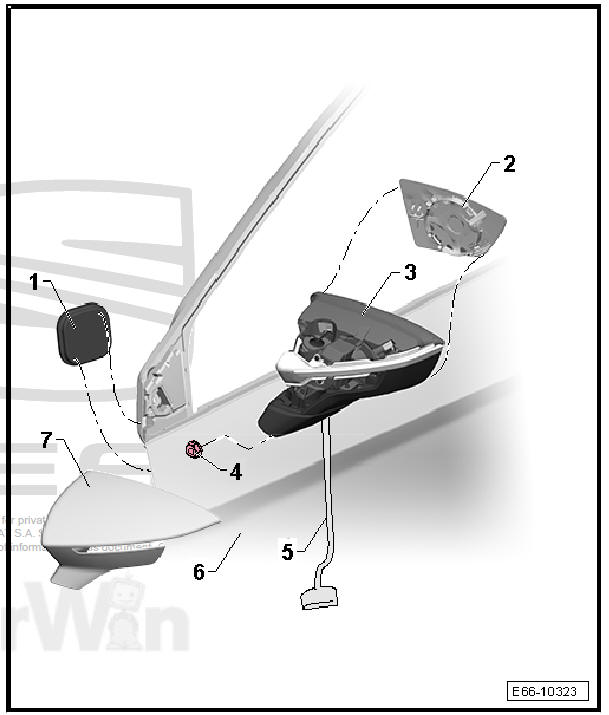

Exploded view - exterior mirror
- - Cover
- - Exterior mirror glass
- - Exterior mirror base
- - Nut
- 1x
- 20+- 2.5 Nm
- - Electric connector
- - Front door
- Left-side
- - Exterior mirror casing
- Removing and installing exterior mirror
- Wing mirror glass: removal and assembly
- Removing and installing cover for mirror
