Seat Leon >> Adjusting sunroof panel

Caution

To adjust the panoramic window, the following does not have to be removed:

  • moulded headliner.

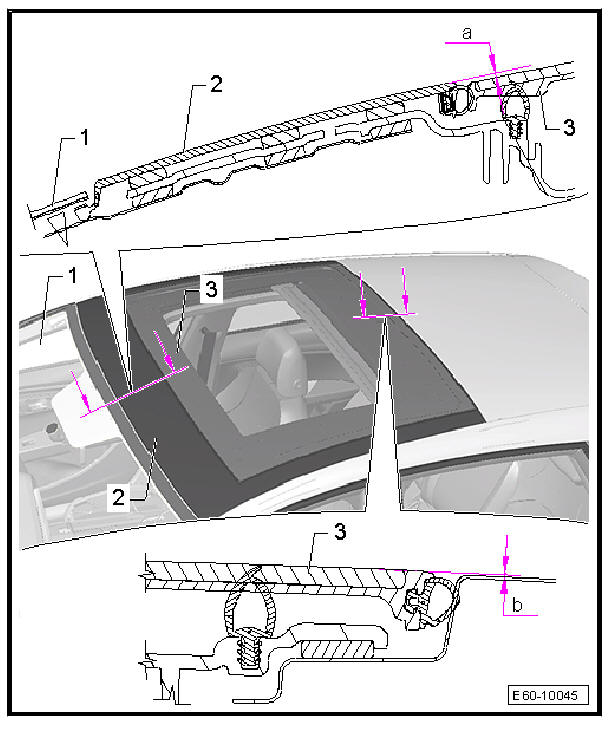

  • Check if the setting dimensions of the panoramic window correspond to the values listed below:

Setting dimensions for the panoramic window

Sunroof

  • If the setting dimensions of the panoramic window do not correspond to the specifications, please proceed as follows:

Adjusting

  • Open the first section of the opening path of the window.

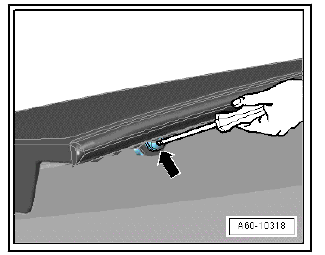

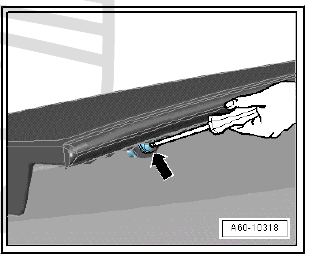

  • From outside loosen on both sides the screws -arrow-, but do not remove them.
  • Close the window.
  • Open the roller blind completely.

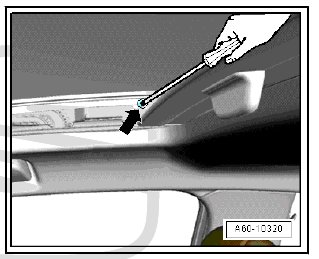

  • From inside loosen on both sides the front screws -arrow-, but do not remove them.

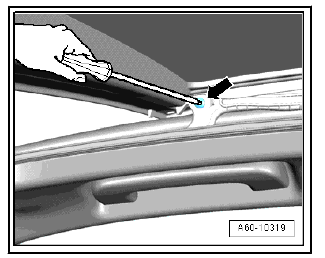

  • From inside loosen on both sides the rear screws -arrow-, but do not remove them.
  • Move the panoramic window into the "open" position.
  • Move the panoramic window into the "close" position.
  • Temporarily adjust the screws accessible from the inside.
  • Check if the setting dimensions of the panoramic window correspond to the listed values.
  • If this is not the case, open the first section of the opening path of the window.

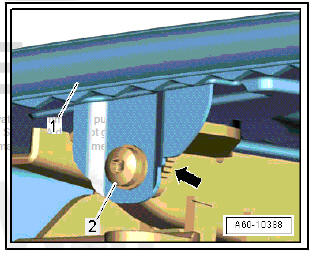

  • On both sides loosen the screw -2-, but do not tighten it. Adjust the height of the window -1- according to the difference determined.

    Orient yourself on the notches -arrow- in the window and in the guides.

  • For an optimum fit, the window must rest on both sides in the same notches.
  • Close the panoramic window and check if your setting dimensions correspond to the listed values.
  • Tighten the screws accessible from the inside with tightening torque.
  • Open the first section of the opening path of the window.
  • From the outside, tighten the rear screws -arrow- on both sides using the tightening torque.

Sunroof

Note

  • You should achieve an optimum appearance.
  • Check, viewed from the vehicle rear-end, if the top side of the panoramic window is parallel to the surface of the vehicle roof.

    Removing and installing glass panel
    Removing glass panel (with functional control motor) Removing Open the panoramic window by moving it about 150 mm to the back. From the outside, remove the screws -arrow- on both sides ...

    Running guide, removing and installing
    Removing Roof trim removed Removed roller blind cover Note A second person is needed to remove the frame with the actuating mechanism. One person must loosen the bolted connections wh ...
