Seat Leon >> Assembly overview - panoramic sliding sunroof

Sunroof

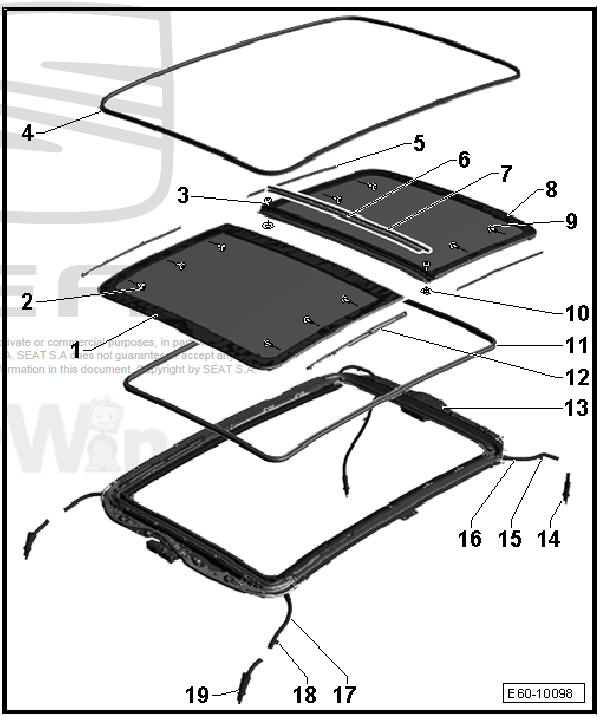

  1. - Front glass panel
    • Removing and fitting
    • Adjusting
  2. - Bolts
    • For front glass panel
    • 6 off
    • 5 Nm
  3. - Bolts
    • For rear glass panel.
    • 2 off
    • 5 Nm
  4. - Exterior seal
    • Renewing
  5. - Exterior side seal
    • Removing and fitting
  6. - Inner seal
    • Removing and fitting
  7. - Exterior seal
    • Removing and fitting
  8. - Rear glass panel
    • Removing and fitting
    • Adjusting
  9. - Bolts
    • For rear glass panel.
    • 4 off
    • 5 Nm
  10. - Spacer
  11. - Inner seal
    • Removing and fitting
  12. - Moulding
    • Conceals the screws of the front glass panel
  13. - Assembly frame
    • Assembly overview
    • Removing and fitting
  14. - Water drainage valve
  15. - Clips
    • 5 on each side
  16. - Water drain hose (rear)

Note

  • When renewing the water drain hose, the replacement part is cut to length at the drain grommet which is not needed.
  • For the positions of stickers and protective films please refer to old part.
  1. - Water drain hose (front)

Note

  • When renewing the water drain hose, the replacement part is cut to length at the drain grommet which is not needed.
  • For the positions of stickers and protective films please refer to old part.
  1. - Clips
    • 5 on each side
  2. - Water drainage valve
    Panoramic sliding roof normalisation run
    Note After renewal of glass panel, motor, tilting mechanism or sun blind, a normalisation run must be carried out for the corresponding drive. Roll-back function is switched off when establi ...

    Assembly overview - Cranks and tilt mechanism
    - Wind deflector Removing and fitting - Bolt. For securing wind deflector 5 off 2 Nm - Sealing plug - Mounting - Support plate 1 on each side - Bolt. ...
