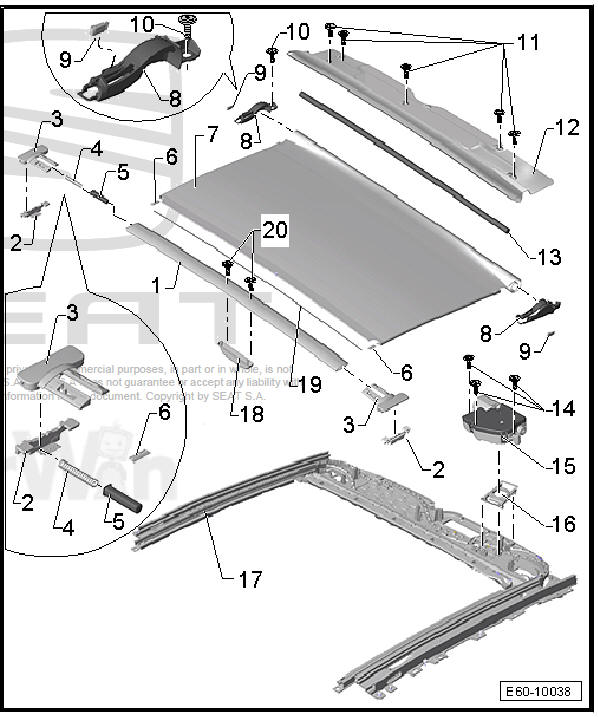

Seat Leon >> Assembly overview - sliding sunroof sun blind

SEAT Leon Service and Repair Manual / General body repairs, exterior / Sunroof / Sun roof / Assembly overview - sliding sunroof sun blind

Sunroof

  1. - Tension bow
  2. - Sliding piece (bottom part)
  3. - Sliding piece (top part)
    • This element has a spring on its right side
  4. - Spring
    • 1x
    • Only for the right side
  5. - Spring cover
  6. - Guide piece
    • Fitted for the sliding piece.
  7. - Roller blind
  8. - Bracket of the roller blind axle.
  9. - Stop
  10. - Bolt.
    • 1 + 1 each
    • 2 Nm
  11. - Bolt.
    • 5 off
    • 2.5 Nm
  12. - Cover of the sunshade roller blind

Removing

  • Removing the panoramic window. Proceed as follows:
    • Actuating motor for the functions.
    • The actuating motor for these functions is defective.
  • Remove bolts.
  • Remove the cover by pulling it in the direction of travel.

fitting

Fit in reverse order from removal, remembering the following:

Use the tightening torque of the screws.

  1. - Roller blind axle
  2. - Bolt.
    • 3 off
    • 4 Nm
  3. - Operating engine with control unit
    • Sliding sunroof adjustment control unit - J245-
  4. - Retaining bracket
  5. - Frame with operating mechanism
  6. - Roller blind grip
  7. - Rod
  8. - Bolt.
    • 2 off
    • 1 Nm

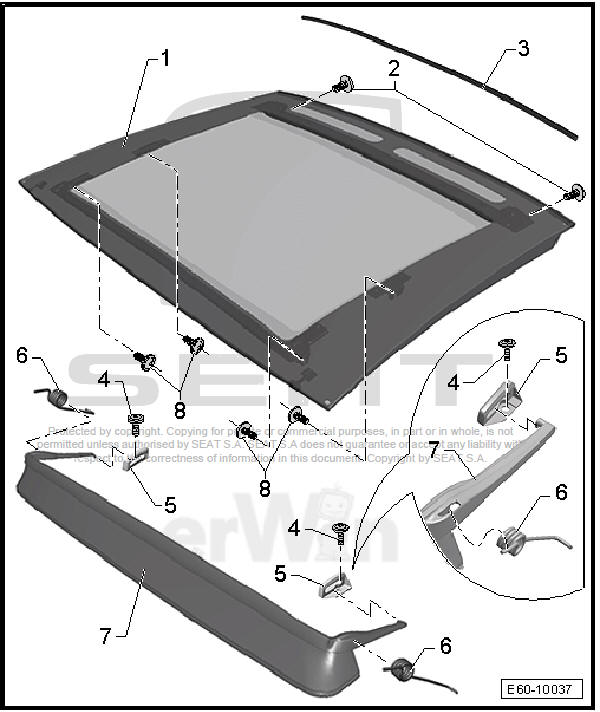

Assembly overview - wind deflector

Sunroof

  1. - panoramic window
  2. - Bolt.
    • 5.5 Nm
  3. - Seal of the panoramic window
  4. - Bolt.
    • 1.5 Nm
  5. - Support plate
  6. - Spring
  7. - Wind deflector
  8. - Bolt.
    • 5.5 Nm
