Seat Leon >> Rear seat bench

Fold down the seat back

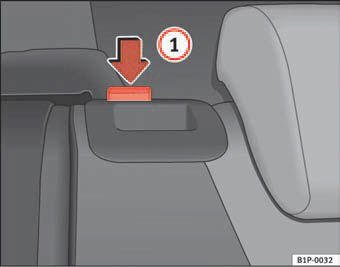

Fig. 92 Folding the seat

Fig. 92 Folding the seat backrests down

– Pull the release button on the backrest (sectioned backrest) forwards in the direction of the arrow
– Fold down the backrest. The rear head restraints may have to be removed before folding the seat forwards if the front seats have been moved far back.

Folding up the seat back

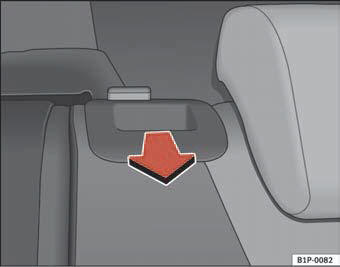

Fig. 93 Folding up the

Fig. 93 Folding up the rear seat back

– Fold the backrest back and push the backrest firmly into the lock.

The red marking should no longer be visible  fig. 93.

WARNING

• Please be careful when raising the backrest! Injuries can be caused if the backrest is tilted without due care and attention.

    Front seats
    Adjustment of the front seats Fig. 90 Front left seat controls The control elements in  fig. 90 are mirrored for the front righthand seat. 1 Adjusting the seat forwards and backwards – ...

    Stowage compartments
    Stowage compartment on the front passenger side Fig. 94 Passenger side: Stowage compartment The compartment can be opened by pulling the lever  fig. 94. WARNING Always keep the stowage com ...
