Seat Leon >> Exterior mirrors

The exterior mirrors can be adjusted using the rotary knob in the centre console.

Fig. 86 Exterior mirror

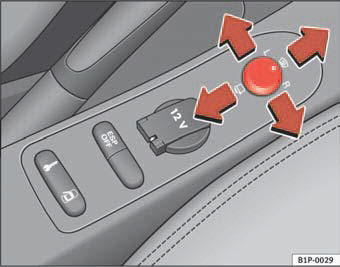

Fig. 86 Exterior mirror control

Basic setting of exterior mirrors
1. Turn knob  fig. 86 to position L (left exterior mirror).
2. Turn the rotary knob to position the mirror so that you have a good view to the rear of the vehicle.
3. Turn knob to position R (right exterior mirror).
4. Swivel the rotary knob to position the mirror so that you have a good view to the rear of the car Heating the exterior mirrors*.

Heating the exterior mirrors*
– Turn the knob forwards to the central position  fig. 86 1 so that the heated rear view mirrors warm up and the heated windscreen* in the wiper blade rest area is activated.

Folding in exterior mirrors*
– Turn the control  fig. 86 to position mirrors. You should always fold in the exterior mirrors if you are to fold in the exterior mirrors. You should always fold in the exterior mirrors if you are driving through an automatic car wash. This will help prevent damage.

Folding wing mirrors using convenience closing*
– The wing mirror folds automatically using the convenience closing (operated by the control or the key).
– To unfold the mirror again, open the door and press the switch

Folding exterior mirrors back out to the extended position*
– Turn the knob to another position to fold the exterior mirrors back out Synchronised mirror adjustment.

Synchronised mirror adjustment
1. Turn the control to the position L (left exterior mirror).
2. Turn the rotary knob to position the mirror so that you have a good view to the rear of the vehicle. The right exterior mirror will be adjusted at the same time (synchronised).

WARNING

• The rear view convex or aspheric mirror increase the field of vision however the objects appear smaller and further away in the mirrors. If you use these mirrors to estimate the distance to vehicles behind you when changing lane, you could make a mistake. Risk of accident.
• If possible, use the interior mirror to estimate distances to vehicles behind you.
• Make sure that you do not get your finger trapped between the mirror and the mirror base when folding back the mirrors. Risk of injury!

For the sake of the environment
The exterior mirror heating should be switched off when it is no longer needed. Fuel is wasted otherwise.

Note
• If the electrical adjustment ever fails to operate, the mirrors can be adjusted by hand by lightly pressing the edge of the mirror glass.
• The following guideline applies to vehicles with electric exterior mirrors: If the mirror housing is moved as a result of exterior force (e.g. knocked when parking the vehicle), the mirrors must be folded in electrically to the final position. Do not readjust the mirror housing by hand, as this will interfere with the mirror adjuster function.
• The rear view mirrors can be adjusted separately or simultaneously, as described before.
